TLR30/1255 Four-point Contact Ball Slewing Ring

TLR30/1255

GET A QUOTE ANY QUESTIONS

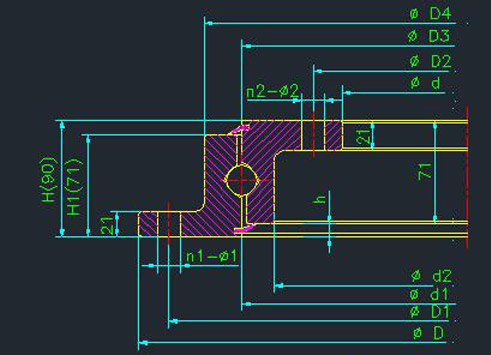

Specifications of TLR30/1255 Four-point Contact Ball Slewing Ring

Designation	No Gear	TLR30/1255
Boundary Dimension	D	1400
	d	1105
	H	90
	H1	71
	h	19
Mounting Hole Size	D1	1360
	D2	1145
	n1	42
	n2	42
	φ1	φ22
	φ2	φ22
Structure dimensions	D4	1317
	d2	1193
	d1	1255
	D3	1255
Wt(KG)		172
