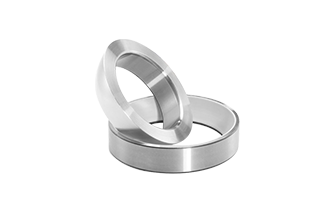

Angular Contact Spherical Plain Bearings

The sliding contact surfaces of the shaft ring and seat ring are spherical at a certain angle with the bearing axis, which is the contact angle. The angular contact spherical plain bearings are in split form, which means that the shaft ring and the seat ring could be installed separately.

At THB Bearings, we specialize in providing high-quality angular contact spherical plain bearings that are designed to meet the rigorous demands of various industrial applications. As one of the leading plain sleeve bearing factories, we are committed to delivering products that offer exceptional performance and reliability. Our angular contact spherical plain bearings are engineered to handle both radial and axial loads, making them ideal for applications that require precise alignment and smooth operation.

Whether you are looking for standard bearings or custom solutions, our extensive range ensures that you will find the perfect fit for your needs. Trust THB Bearings for all your bearing requirements and experience the difference that comes from working with a top-tier manufacturer dedicated to excellence.

Features of Angular Contact Spherical Plain Bearings

• Angular contact spherical plain bearings could be used to carry combined loads (axial and radial loads).

• Angular contact spherical sliding bearings can only carry axial loads in one direction.

Applications of Angular Contact Spherical Plain Bearings

Angular contact spherical ball bearings sizes

Angular contact spherical ball bearings are designed to accommodate both radial and axial loads, making them suitable for a variety of demanding applications. These bearings come in a range of sizes to meet different requirements. Here is an overview of the typical sizes available for angular contact spherical ball bearings:

Inner Diameter (ID)

• Small Sizes: Starting from as small as 10 mm

• Medium Sizes: Commonly available in sizes ranging from 20 mm to 100 mm

• Large Sizes: Can go up to 200 mm or more, depending on the specific application requirements

Outer Diameter (OD)

• Small Sizes: Starting from around 30 mm

• Medium Sizes: Typically range from 50 mm to 200 mm

• Large Sizes: Can exceed 300 mm, tailored to specific industrial needs

Width (B)

• Narrow Width: Starting from around 10 mm

• Standard Width: Commonly available in widths ranging from 20 mm to 50 mm

• Wide Width: Can go up to 100 mm or more for heavy-duty applications

Contact Angle

• 15 Degrees: Suitable for high-speed applications with moderate axial loads

• 25 Degrees: Balances between speed and load-carrying capacity

• 40 Degrees: Designed for applications with high axial loads

Load Capacity

• Light Load Bearings: Suitable for applications with minimal load requirements

• Medium Load Bearings: Ideal for general industrial applications

• Heavy Load Bearings: Designed for heavy-duty applications with significant load demands

Custom Sizes

Tailored Solutions: Custom sizes and specifications can be manufactured to meet unique application requirements. This includes variations in inner and outer diameters, widths, and contact angles.

Material Options

• Standard Steel: Commonly used for general applications

• Stainless Steel: Ideal for corrosive environments

• Ceramic: Used for high-speed and high-temperature applications

Sealing Options

• Open Bearings: Suitable for environments where contamination is not a concern

• Sealed Bearings: Provide protection against dust and contaminants, extending the bearing life

Precision Grades

• Standard Precision: Suitable for general applications

• High Precision: Used in applications requiring high accuracy and reliability

At THB Bearings, we offer a comprehensive range of angular contact spherical ball bearings in various sizes to meet the diverse needs of our customers. Whether you require standard sizes or custom solutions, our team of experts is ready to assist you in selecting the right bearings for your specific applications. Trust us for high-quality bearings that deliver exceptional performance and reliability.
