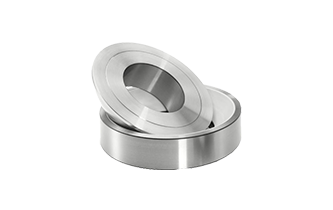

Axial Spherical Plain Bearings

Name: Axial Spherical Plain Bearings
Brand: THB BEARINGS CO.,LTD.

GET A QUOTE ANY QUESTIONS

There is a convex spherical surface on the shaft ring and a corresponding concave spherical surface in the seat ring. Axial Spherical Plain Bearing could be split, which means that the shaft ring and the seat ring could be installed separately.

At THB Bearings, we are proud to be one of the premier plain bearings suppliers in the industry, offering a wide range of high-quality axial spherical plain bearings. These bearings are specifically designed to handle axial loads and accommodate misalignment, making them ideal for applications that demand both durability and precision.

Our axial spherical plain bearings are engineered to provide exceptional performance in various industrial settings, from heavy machinery to precision equipment. With a focus on reliability and longevity, our bearings are manufactured using advanced materials and cutting-edge technology to ensure they meet the highest standards of quality.

As a trusted plain bearings supplier, we understand the unique needs of our customers and are committed to providing tailored solutions that meet your specific requirements. Whether you need standard bearings or custom designs, our extensive product range and expert team are here to support you every step of the way.

Choose THB Bearings for your axial spherical plain bearing needs and experience the difference that comes from working with a supplier dedicated to excellence and customer satisfaction.

Features of Axial Spherical Plain Bearings

Axial spherical plain bearings are mainly suitable for carrying axial loads, but they can also withstand combined (axial and radial) loads.
The radial load component of the combined load should not exceed 50% of the simultaneous axial load component.
For high radial loads, it is recommended to use the thrust joint bearings and radial joint bearings of the GE series together.

Applications of Axial Spherical Plain Bearings

Machine tools	construction machinery	automation equipment
automobiles	water conservancy machinery	/

Radial Spherical Plain Bearing Size Chart

Radial spherical plain bearings are designed to accommodate radial loads and can also handle some axial loads due to their spherical inner and outer rings. These bearings are commonly used in applications where alignment adjustments are necessary. Below is a general size chart for radial spherical plain bearings, which includes typical dimensions and load capacities. Please note that specific sizes and capacities may vary depending on the manufacturer and the specific bearing series.

Bearing Series	Inner Diameter (d)	Outer Diameter (D)	Width (B)	Dynamic Load Capacity ©	Static Load Capacity (C0)
GE4E	4 mm	12 mm	5 mm	3.35 kN	16.8 kN
GE6E	6 mm	14 mm	6 mm	5.3 kN	26.5 kN
GE8E	8 mm	16 mm	8 mm	8.4 kN	42 kN
GE10E	10 mm	19 mm	9 mm	10.5 kN	52.5 kN
GE12E	12 mm	22 mm	10 mm	13.5 kN	67.5 kN
GE15E	15 mm	26 mm	12 mm	21 kN	105 kN
GE17E	17 mm	30 mm	14 mm	25 kN	125 kN
GE20E	20 mm	35 mm	16 mm	32 kN	160 kN
GE25E	25 mm	42 mm	20 mm	45 kN	225 kN
GE30E	30 mm	47 mm	22 mm	55 kN	275 kN
GE35E	35 mm	55 mm	25 mm	70 kN	350 kN
GE40E	40 mm	62 mm	28 mm	88 kN	440 kN
GE45E	45 mm	68 mm	32 mm	110 kN	550 kN
GE50E	50 mm	75 mm	35 mm	140 kN	700 kN
GE60E	60 mm	90 mm	44 mm	210 kN	1050 kN
GE70E	70 mm	105 mm	49 mm	275 kN	1375 kN
GE80E	80 mm	120 mm	55 mm	355 kN	1775 kN
GE90E	90 mm	130 mm	60 mm	430 kN	2150 kN
GE100E	100 mm	150 mm	70 mm	540 kN	2700 kN
GE110E	110 mm	160 mm	70 mm	590 kN	2950 kN
GE120E	120 mm	180 mm	85 mm	750 kN	3750 kN
GE140E	140 mm	210 mm	90 mm	950 kN	4750 kN
GE160E	160 mm	230 mm	105 mm	1200 kN	6000 kN
