TLOR30/1355 Four-point Contact Ball Slewing Ring

TLOR30/1355

GET A QUOTE ANY QUESTIONS

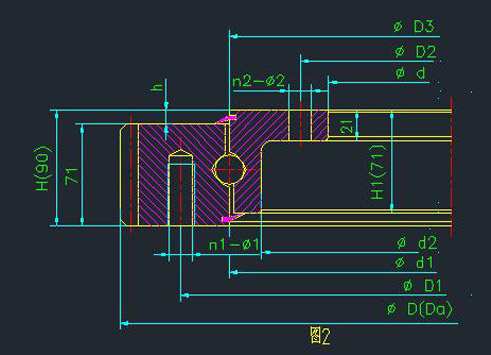

Specifications of TLOR30/1355 Four-point Contact Ball Slewing Ring

Designation	External Gear	TLOR30/1355
Boundary Dimension	D(Da)	1500
	d	1205
	H	90
	H1	71
	h	19
Mounting Hole Size	D1	1416
	D2	1245
	n1	42
	n2	42
	φ1	M20
	φ2	φ22
Structure dimensions	d2	1293
	d1	1355
	D3	1355
Gear Data	m	10
	z	148
	do	1480
	x	0
Wt(KG)		234
