TLOR20/644 Four-point Contact Ball Slewing Ring

TLOR20/644

GET A QUOTE ANY QUESTIONS

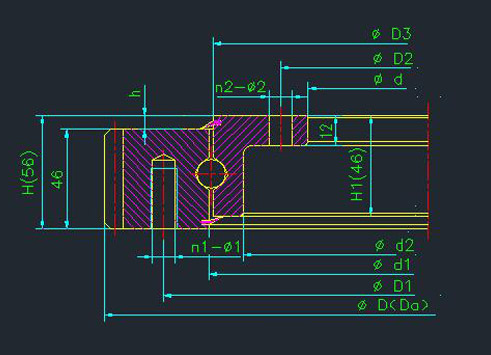

Specifications of TLOR20/644 Four-point Contact Ball Slewing Ring

Designation	External Gear	TLOR20/644
Boundary Dimension	D(Da)	742.8
	d	534
	H	56
	H1	46
	h	10
Mounting Hole Size	D1	685
	D2	562
	n1	16
	n2	16
	φ1	M12
	φ2	φ18
Structure dimensions	d2	605
	d1	645.5
	D3	642.5
Gear Data	m	6
	z	122
	do	732
	x	0
Wt(KG)		47
