TLIR30/1255 Four-point Contact Ball Slewing Ring

TLIR30/1255

GET A QUOTE ANY QUESTIONS

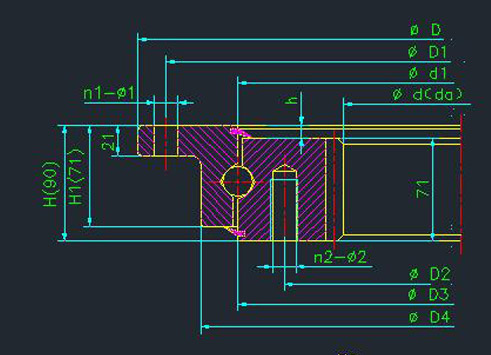

Specifications of TLIR30/1255 Four-point Contact Ball Slewing Ring

Designation	Internal Gear	TLIR30/1255
Boundary Dimension	d(da)	1112
	D	1400
	H	90
	H1	71
	h	19
Mounting Hole Size	D1	1360
	D2	1194
	n1	42
	n2	42
	φ1	φ22
	φ2	M20
Structure dimensions	D4	1317
	d1	1255
	D3	1255
Gear Data	m	10
	z	113
	do	1130
	x	0
Wt(KG)		208
