TLIR20/414 Four-point Contact Ball Slewing Ring

TLIR20/414

GET A QUOTE ANY QUESTIONS

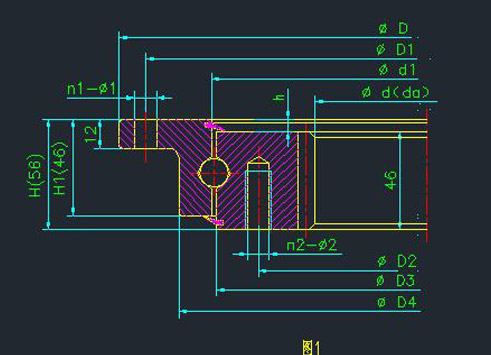

Specifications of TLIR20/414 Four-point Contact Ball Slewing Ring

Designation	Internal Gear	TLIR20/414
Boundary Dimension	d(da)	326.5
	D	518
	H	56
	H1	46
	h	10
Mounting Hole Size	D1	490
	D2	375
	n1	8
	n2	12
	φ1	φ18
	φ2	M12
Structure dimensions	D4	453
	d1	415.5
	D3	412.5
Gear Data	m	5
	z	67
	do	335
	x	0
Wt(KG)		28
