SX011868 Cross Cylindrical Roller Bearing

S-011868

GET A QUOTE ANY QUESTIONS

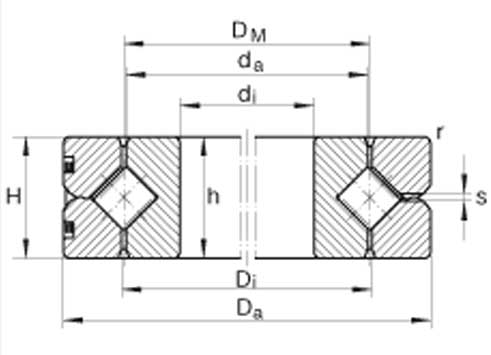

Specifications of SX011868 Cross Cylindrical Roller Bearing

ITEM		SX011868
Boundary dimensions(mm)	Boundary dimensions(d)	340
	Boundary dimensions(D)	420
	Boundary dimensions(Dm)	380
	Boundary dimensions(H)	38
	Boundary dimensions(h)	38
	Major Dimensions(Chamfer)r	2.1
	da	379.2
	Da	380.8
Boundary dimensions(r/min)		2.1
Basic loading(KN)	Basic loading(Axial)(Ca)	265
	Basic loading(Axial)(Coa)	1148
	Basic loading(Radial)(Cr)	167
	Basic loading(Radial)(Cor)	563
Weight(kg)		13.5
