CRBH 9016 A Cross Cylindrical Roller Bearing

CRBH 9016 A

GET A QUOTE ANY QUESTIONS

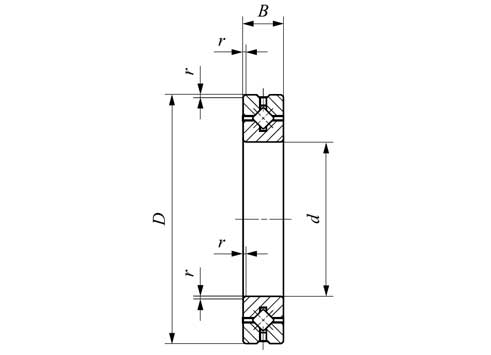

Specifications of CRBH 9016 A Cross Cylindrical Roller Bearing

ITEM		CRBH9016A
Weight(Ref.)(kg)		0.81
Boundary dim(mm)	Boundary dim(d)	90
	Boundary dim(D)	130
	Boundary dim(B)	16
	Boundary dim(r)	0.6
Mounting dimensions(mm)	Mounting dimensions(da)	98
Mounting dimensions(mm)	Mounting dimensions(Da)	122
Basic dynamic load rating(N)	Basic dynamic load rating	33 100
Basic dynamic load rating(N)	Basic static load rating	46 800
Shaft diameter(mm)		90
