CRBH 5013 A UU Cross Cylindrical Roller Bearing

CRBH 5013 A UU

GET A QUOTE ANY QUESTIONS

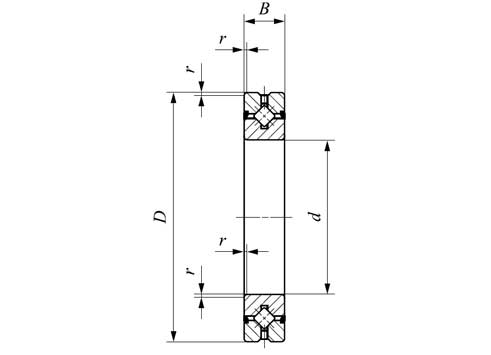

Specifications of CRBH 5013 A UU Cross Cylindrical Roller Bearing

ITEM		CRBH5013AUU
Weight(Ref.)(kg)		0.29
Boundary dim(mm)	Boundary dim(d)	50
	Boundary dim(D)	80
	Boundary dim(B)	13
	Boundary dim(r)	0.6
Mounting dimensions(mm)	Mounting dimensions(da)	56
Mounting dimensions(mm)	Mounting dimensions(Da)	74
Basic dynamic load rating(N)	Basic dynamic load rating	17 300
Basic dynamic load rating(N)	Basic static load rating	20 900
Shaft diameter(mm)		50
