CRBH 20025 A UU Cross Cylindrical Roller Bearing

CRBH 20025 A UU

GET A QUOTE ANY QUESTIONS

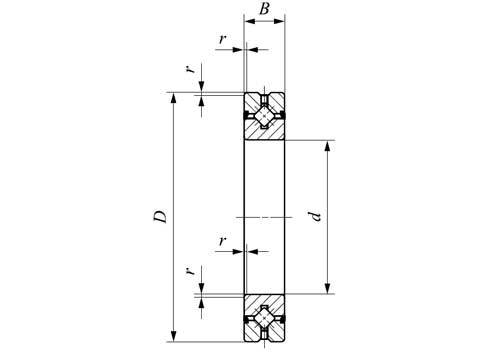

Specifications of CRBH 20025 A UU Cross Cylindrical Roller Bearing

ITEM		CRBH20025AUU
Weight(Ref.)(kg)		4
Boundary dim(mm)	Boundary dim(d)	200
	Boundary dim(D)	260
	Boundary dim(B)	25
	Boundary dim(r)	1
Mounting dimensions(mm)	Mounting dimensions(da)	212
Mounting dimensions(mm)	Mounting dimensions(Da)	248
Basic dynamic load rating(N)	Basic dynamic load rating	92 300
Basic dynamic load rating(N)	Basic static load rating	169 000
Shaft diameter(mm)		200
