CRBH 12025 A UU Cross Cylindrical Roller Bearing

CRBH 12025 A UU

GET A QUOTE ANY QUESTIONS

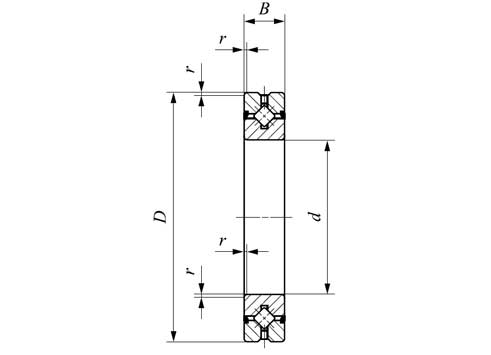

Specifications of CRBH 12025 A UU Cross Cylindrical Roller Bearing

ITEM		CRBH12025AUU
Weight(Ref.)(kg)		2.62
Boundary dim(mm)	Boundary dim(d)	120
	Boundary dim(D)	180
	Boundary dim(B)	25
	Boundary dim(r)	1
Mounting dimensions(mm)	Mounting dimensions(da)	132
Mounting dimensions(mm)	Mounting dimensions(Da)	168
Basic dynamic load rating(N)	Basic dynamic load rating	73 400
Basic dynamic load rating(N)	Basic static load rating	108 000
Shaft diameter(mm)		120
