CRBH 11020 A UU Cross Cylindrical Roller Bearing

CRBH 11020 A UU

GET A QUOTE ANY QUESTIONS

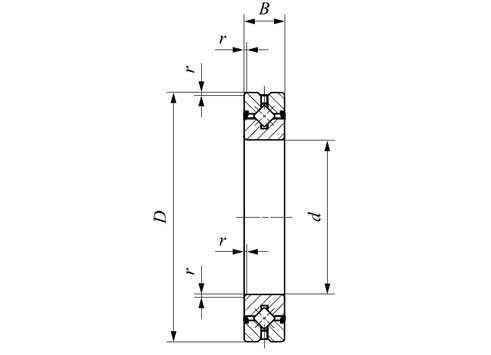

Specifications of CRBH 11020 A UU Cross Cylindrical Roller Bearing

ITEM		CRBH11020AUU
Weight(Ref.)(kg)		1.56
Boundary dim(mm)	Boundary dim(d)	110
	Boundary dim(D)	160
	Boundary dim(B)	20
	Boundary dim(r)	0.6
Mounting dimensions(mm)	Mounting dimensions(da)	120
Mounting dimensions(mm)	Mounting dimensions(Da)	150
Basic dynamic load rating(N)	Basic dynamic load rating	52 400
Basic dynamic load rating(N)	Basic static load rating	77 400
Shaft diameter(mm)		110
