CRBC 10020 UU Cross Cylindrical Roller Bearing

CRBC 10020 UU

GET A QUOTE ANY QUESTIONS

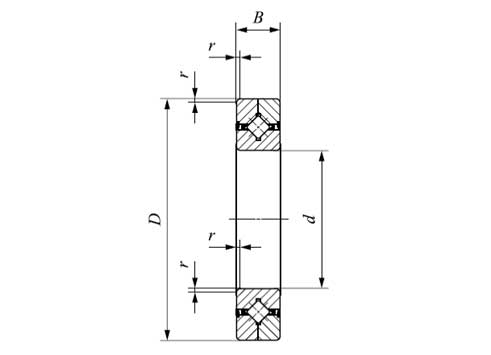

Specifications of CRBC 10020 UU Cross Cylindrical Roller Bearing

Shaft diameter(mm)		100
ITEM		CRBC10020UU
Weight(Ref.)(kg)		1.45
Boundary dim(mm)	Boundary dim(d)	100
	Boundary dim(D)	150
	Boundary dim(B)	20
	Boundary dim(r)	1
Mounting dimensions(mm)	Mounting dimensions(da)	108
Mounting dimensions(mm)	Mounting dimensions(Da)	134
Basic dynamic load rating(N)	Basic dynamic load rating(C)	31 500
Basic dynamic load rating(N)	Basic static load rating)(C0)	45 100
