Cam Follower

GET A QUOTE ANY QUESTIONS

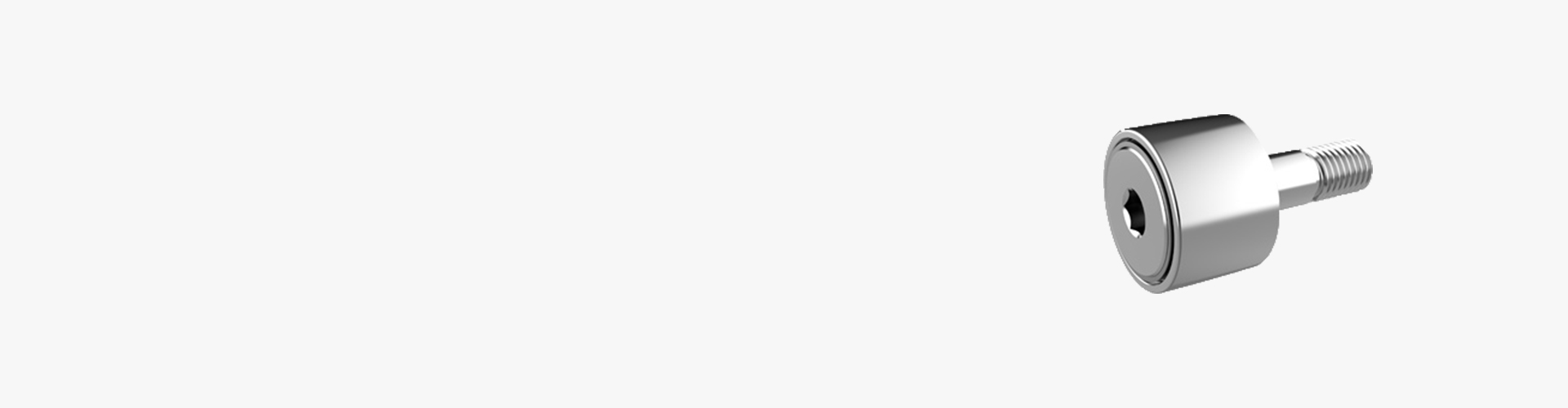

Cam followers, also called stud type track rollers, are special roller bearings that are mainly used to follow tracks or cams and are used in a wide range of applications in linear motion systems. We often see cam followers in conveyors and industrial transmission lines, such as in the food and beverage industry, the plastics manufacturing industry, the glass manufacturing industry, and others. As one of cam followers manufacturers, we will try our best to meet customers' needs.

Technical Information Features Applications PDF Download

How to Choose the Ideal Cam Follower?

The following factors can be considered.

the operating environment, such as the operational requirements of your equipment
speed of operation and maintenance, the stability of the equipment is one of the main objectives to be pursued.
ease of installation.
Choosing the right cam followers will help to ensure that your equipment runs consistently, accurately and efficiently, thus avoiding downtime, saving labour requirements and reducing costs.

Cam Followers Types

Various Structures of CAM FOLLOWERS (various designs and variants)

1. Roller element: needle roller or cylindrical roller

2. Cage: with or without cage

3. Eccentric sleeve: with or without eccentric sleeve

With the combination of the above different structures, THB can provide you with the following models:

KR/KRV/KRE/NUKR/PWKR/NUKRE/PWKRE

Size Range of THB Cam Followers

The size range of KRV is: inner diameter 6-30mm, outer diameter 16-90mm, width 12.2-37mm

The size range of NUKR/PWKR is: inner diameter 16-30mm, outer diameter 35-90mm, width 19.6-37mm

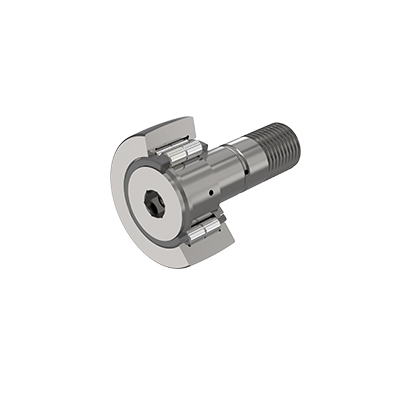

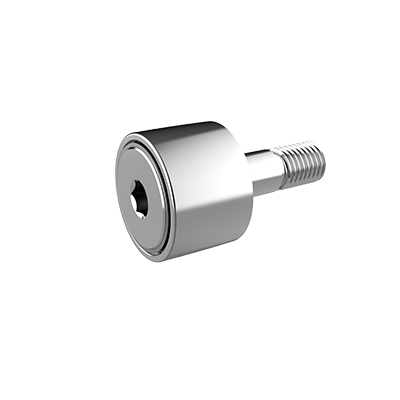

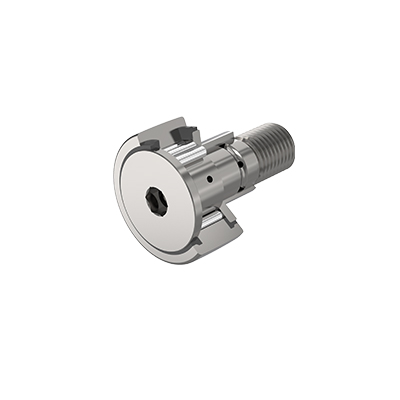

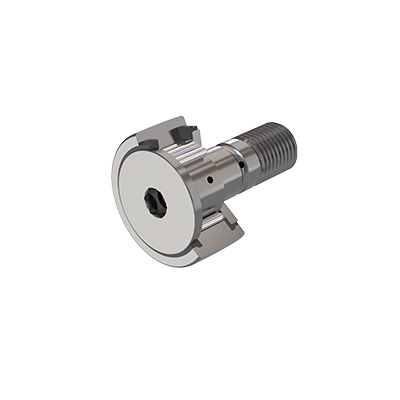

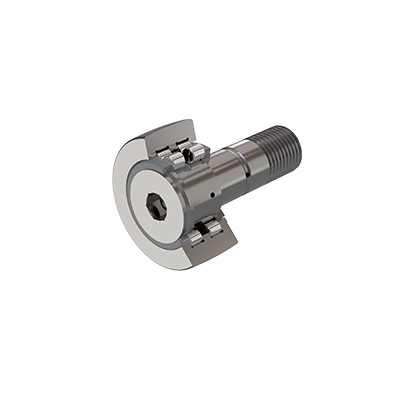

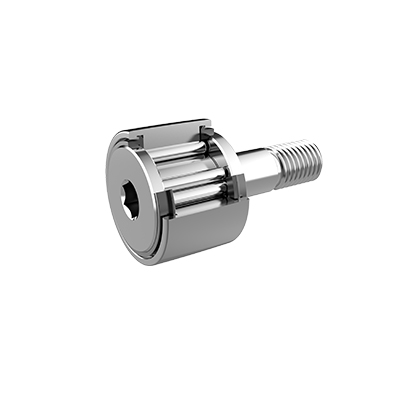

KRE-PP PWKR-2RS KRV KR-PP NUKR-2RS

Needle roller Stud type track rollers bearing, with cage, With eccentric ring.

Cylindrical roller Stud type track rollers bearing, With axial guidance and central rib, With lips seals, Double row-Full complement cylindrical rollers.

Needle roller Stud type track rollers bearing, Full complement needle rollers.

Needle roller Stud type track rollers bearing, With cage.

Cylindrical roller Stud type track rollers bearing, With axial guidance, With Labyrinth seasl, Double row-Full complement cylindrical rollers.

	Dimensions					Basic load rating
Designation	Equate Designation	D	d1 h7	B	C	Crw N	Corw N
KR 16	CF 6 BR	16	6	28	11	3140	3300
KR 16 PP	CF 6 BUUR	16	6	28	11	3140	3300
KRE 16 PP	CFE 6 BUUR	16	6	28	11	3140	3300
KR 16 SK PP	undefined	16	6	28	11	3140	3300
KRV 16 PP	CF 6 VBUUR	16	6	28	11	4800	6500
KR 19	CF 8 BR	19	8	32	11	3480	3800
KR 19 PP	CF 8 BUUR	19	8	32	11	3480	3800
KR 19 SK PP	undefined	19	8	32	11	3480	3800
KRV 19 PP	CF 8 VBUUR	19	8	32	11	5300	7900
KR 22	CF 10 BR	22	10	36	12	4500	5200
KR 22 PP	CF 10 BUUR	22	10	36	12	4500	5200
KRE 22 PP	CFE 10 BUUR	22	10	36	12	4500	5200
KRV 22 PP	CF 10 VBUUR	22	10	36	12	6100	9000
KR 26	CF 10-1 BR	26	10	36	12	5050	6300
KR 26 PP	CF 10-1 BUUR	26	10	36	12	5050	6300
KRE 26 PP	CFE 10-1 BUUR	26	10	36	12	5050	6300
KRV 26 PP	CF 10-1 VBUUR	26	10	36	12	7200	11000
KR 30	CF 12 BR	30	12	40	14	6700	8500
KR 30 PP	CF 12 BUUR	30	12	40	14	6700	8500
KRE 30 PP	CFE 12 BUUR	30	12	40	14	6700	8500
KRV 30 PP	CF 12 VBUUR	30	12	40	14	9400	14800
KR 32	CF 12-1 BR	32	12	40	14	7000	9100
KR 32 PP	CF 12-1 BUUR	32	12	40	14	7000	9100
KRE 32 PP	CFE 12-1 BUUR	32	12	40	14	7000	9100
KRV 32 PP	CF 12-1 VBUUR	32	12	40	14	9800	16000
KR 35	CF 16 BR	35	16	52	18	9650	14200
KR 35 PP	CF 16 BUUR	35	16	52	18	9650	14200
KRE 35 PP	CFE 16 BUUR	35	16	52	18	9650	14200
KRV 35 PP	CF 16 VBUUR	35	16	52	18	12500	23000
KR 40	CF 18 BR	40	18	58	20	10800	15700
KR 40 PP	CF 18 BUUR	40	18	58	20	10800	15700
KRE 40 PP	CFE 18 BUUR	40	18	58	20	10800	15700
KRV 40 PP	CF 18 VBUUR	40	18	58	20	14500	26400
KR 47 PP	CF 20-1 BUUR	47	20	66	24	15200	25900
KRE 47 PP	CFE 20-1 BUUR	47	20	66	24	15200	25900
KRV 47 PP	CF 20-1 VBUUR	47	20	66	24	20100	41000
KR 52 PP	CF 20 BUUR	52	20	66	24	16500	28500
KRE 52 PP	CFE 20 BUUR	52	20	66	24	16500	28500
KRV 52 PP	CF 20 VBUUR	52	20	66	24	22100	47800
KR 62 PP	CF 24 BUUR	62	24	80	29	25800	47800
KRE 62 PP	CFE 24 BUUR	62	24	80	29	25800	47800
KRV 62 PP	CF 24 VBUUR	62	24	80	29	33300	74800
KR 72 PP	CF 24-1 BUUR	72	24	80	29	27800	52800
KRE 72 PP	CFE 24-1 BUUR	72	24	80	29	27800	52800
KRV 72 PP	CF 24-1 VBUUR	72	24	80	29	36300	84700
KR 80 PP	CF 30 BUUR	80	30	100	35	38300	76800
KRE 80 PP	CFE 30 BUUR	80	30	100	35	38300	76800
KRV 80 PP	CF 30 VBUUR	80	30	100	35	48200	116800
KR 90 PP	CF 30-2 BUUR	90	30	100	35	40200	82800
KRE 90 PP	CFE 30-2 BUUR	90	30	100	35	40200	82800
KRV 90 PP	CF 30-2 VBUUR	90	30	100	35	51800	127000
NUKR 35	undefined	35	16	52	18	15200	18600
NUKRE 35	undefined	35	16	52	18	15200	18600
PWKR 35 2RS	undefined	35	16	52	18	12500	14500
PWKRE 35 2RS	undefined	35	16	52	18	12500	14500
NUKR 40	undefined	40	18	58	20	18600	24800
NUKRE 40	undefined	40	18	58	20	18600	24800
PWKR 40 2R5	undefined	40	18	58	20	14200	17800
PWKRE 40 2RS	undefined	40	18	58	20	14200	17800
NUKR 47	undefined	47	20	66	24	28400	37400
NUKRE 47	undefined	47	20	66	24	28400	37400
PWKR 47 2RS	undefined	47	20	66	24	24300	30300
PWKRE 47 2RS	undefined	47	20	66	24	24300	30300
NUKR 52	undefined	52	20	66	24	28000	40200
NUKRE 52	undefined	52	20	66	24	28000	40200
PWKR 52 2RS	undefined	52	20	66	24	24500	32800
PWKRE 52 2RS	undefined	52	20	66	24	24500	32800
NUKR 62	undefined	62	24	80	28	39500	54000
NUKRE 62	undefined	62	24	80	28	39500	54000
PWKR 62 2RS	undefined	62	24	80	28	34800	45000
PWKRE 62 2RS	undefined	62	24	80	28	34800	45000
NUKR 72	undefined	72	24	80	28	44600	64000
NUKRE 72	undefined	72	24	80	28	44600	64000
PWKR 72 2RS	undefined	72	24	80	28	38400	53500
PWKRE 72 2RS	undefined	72	24	80	28	38400	53500
NUKR 80	undefined	80	30	100	35	68500	103000
NUKRE 80	undefined	80	30	100	35	68500	103000
PWKR 80 2RS	undefined	80	30	100	35	55800	78000
PWKRE 80 2RS	undefined	80	30	100	35	55800	78000
NUKR 90	undefined	90	30	100	35	77800	12000
NUKRE 90	undefined	90	30	100	35	77800	12000
PWKR 90 2RS	undefined	90	30	100	35	61500	91000
PWKRE 90 2RS	undefined	90	30	100	35	61500	91000

Technical Information of THB Cam Followers

Lubrication

THB cam follower has been filled with lithium-based grease and can be re-lubricated through the special oil hole for the bolt shaft. Equivalent grease can be used for re-lubrication.

THB can also provide targeted lubrication programs, if necessary, please contact the THB technical department

Working temperature

Limited by the grease and sealing material, the KR, KRV, and KRE series are suitable for an operating temperature range of -30 °C to +100 °C

Sealing

Cam followers have seals on both sides. For the sealing form, please refer to the corresponding parameter table.

Seal model description:

2RS	Lip seal on both sides of the yoke type track roller.
2Z	Metal shield on both sides of the track roller bearing.
2RSR	Radical contact lip seal on both sides of the yoke type track roller bearing.
2ZL	Sealing shield with lamellar rings on both sides of the track roller bearing.

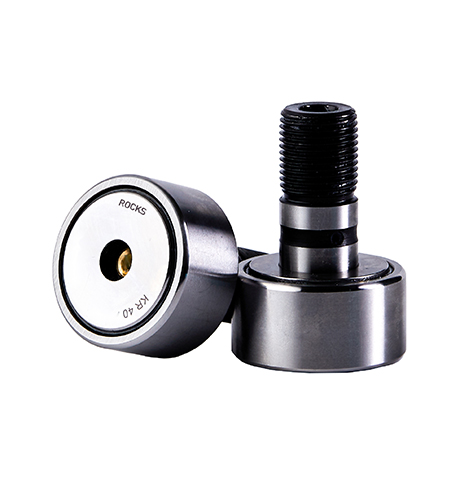

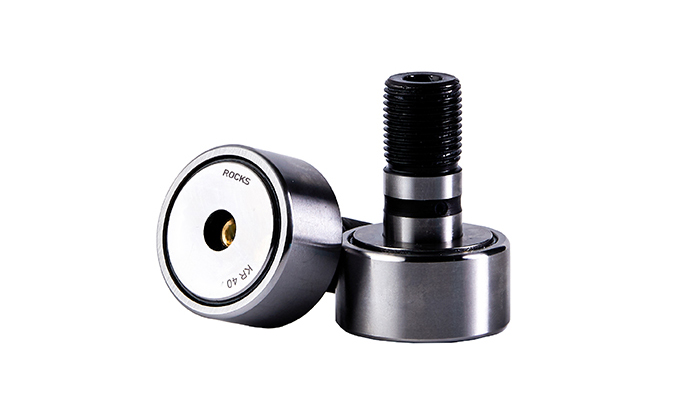

Features of Cam Follower

High radial load, can withstand combined loads, long life, easy to install

High radial load: the thicker wall outer ring not only withstands high radial loads, but also reduces deformation and bending stresses when working as a roller.
Axial loads can be sustained: cylindrical roller bolt shaft rollers with baffled edges can withstand axial loads that may result from off-loading or inclined operation.
Long service life: The convex design of the outer ring surface can be greatly improved where the outer ring may be inclined in relation to the working track surface or where edge stresses need to be minimised.
Easy to install: The design of the bolt shaft construction allows for quick and easy installation of the bolt type roller onto the corresponding machine component with hexagonal nuts.

Applications for Cam Followers

Cam drives	machine slides	material transport
metallurgy	mining equipment	railways
agriculture	construction
