RA 16013

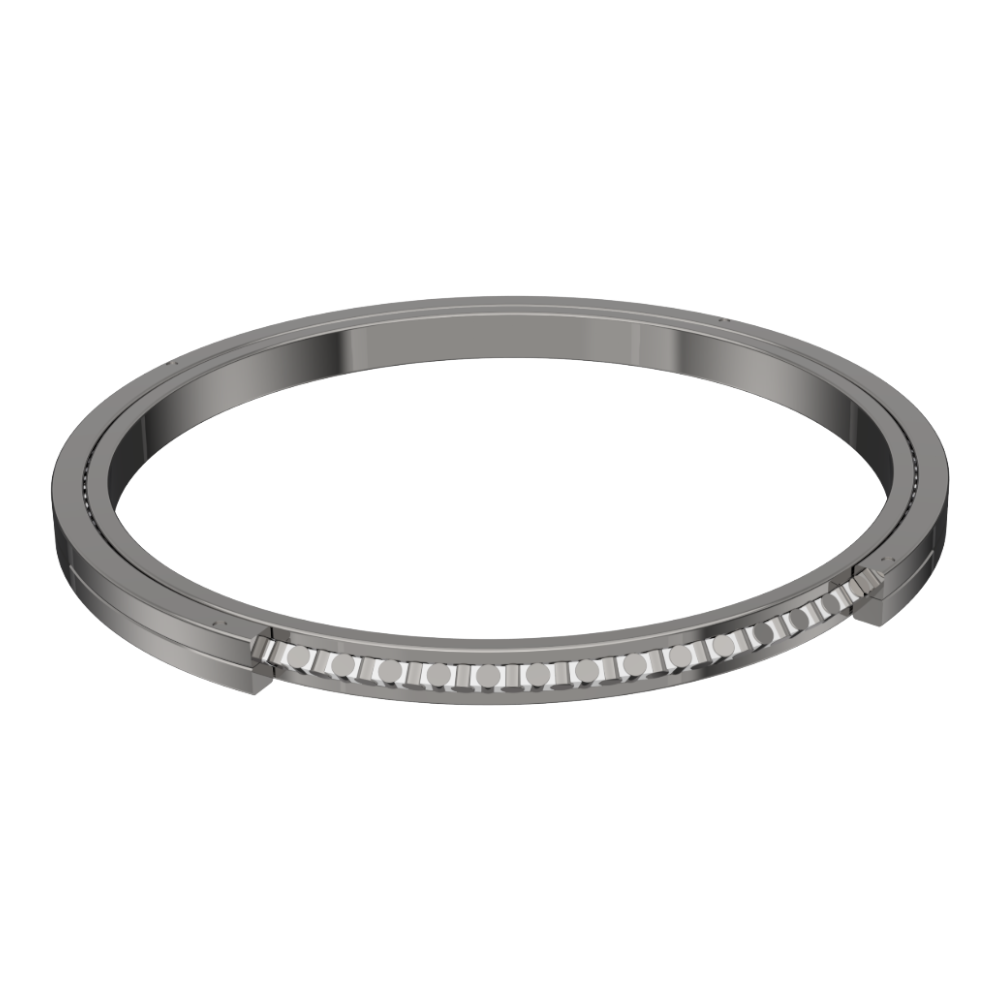

Cross Cylindrical Roller Bearing

RA Type (with two half outer rings and a one-piece inner ring with a super-thin wall)

Get A QuoteDownload
动态图片

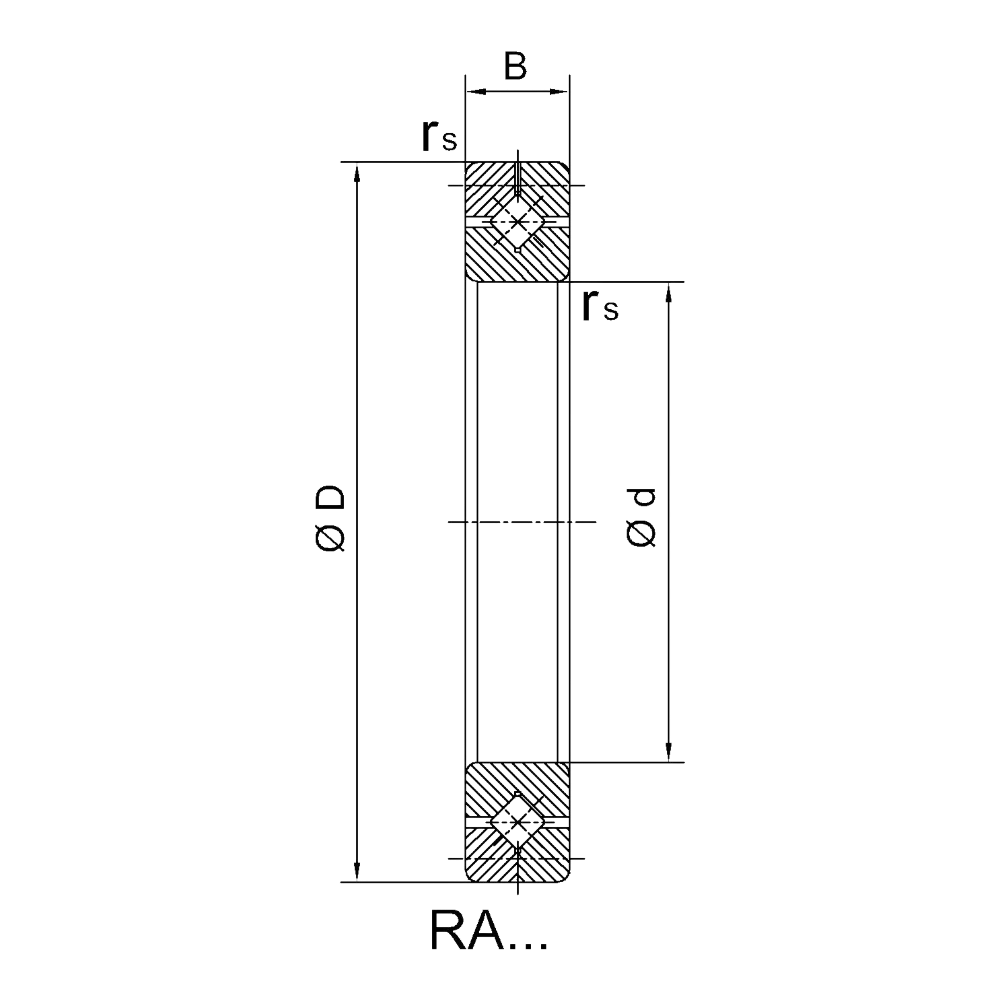

Dimensions

d
160 mm
D
186 mm
B
13 mm
Chamfer
0.6 rs min
动态图片

Technical Specification

Basic dynamic load rating (Cr)
20300 N
Basic static load rating (C0r)
39900 N
Mass
0.62 Kg

Download

Dimensions

D
16  mm
d1h7
6  mm
B
28  mm
B1 max
12.2  mm
B2
16  mm
B3
-  mm
C
11  mm
C1
0.6  mm
r/min
0.15  mm
d2
12.5  mm
d3
-  mm
G
M6(X1)  mm
LG
8  mm
W2)
-  mm
Eccentric sleeve de h9
9  mm
Eccentric sleeve Be
7  mm
Eccentric sleeve e
0.5  mm
BCC1lgDGd2d1B1B2rWKR..-PP  (R=500mm )

Technical
Specification

Grease fitting
NIPA1
Tightening torque MA
3  Nm
Basic dynamic load rating Crw
3140  N
Basic static load rating Corw
3300  N
Fatigue load limit  Curw
440  N
Rotating speed  nDG
13000  r/min
Mass
0.018  KG

Download

HD Power Station ValveHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve Samples

Dimensions

d
160 mm
D
186 mm
B
13 mm
Chamfer
0.6 rs min

Technical Specification

Basic dynamic load rating (Cr)
20300 N
Basic static load rating (C0r)
39900 N
Mass
0.62 Kg
