KR 16 PP

Stud—type track rollers

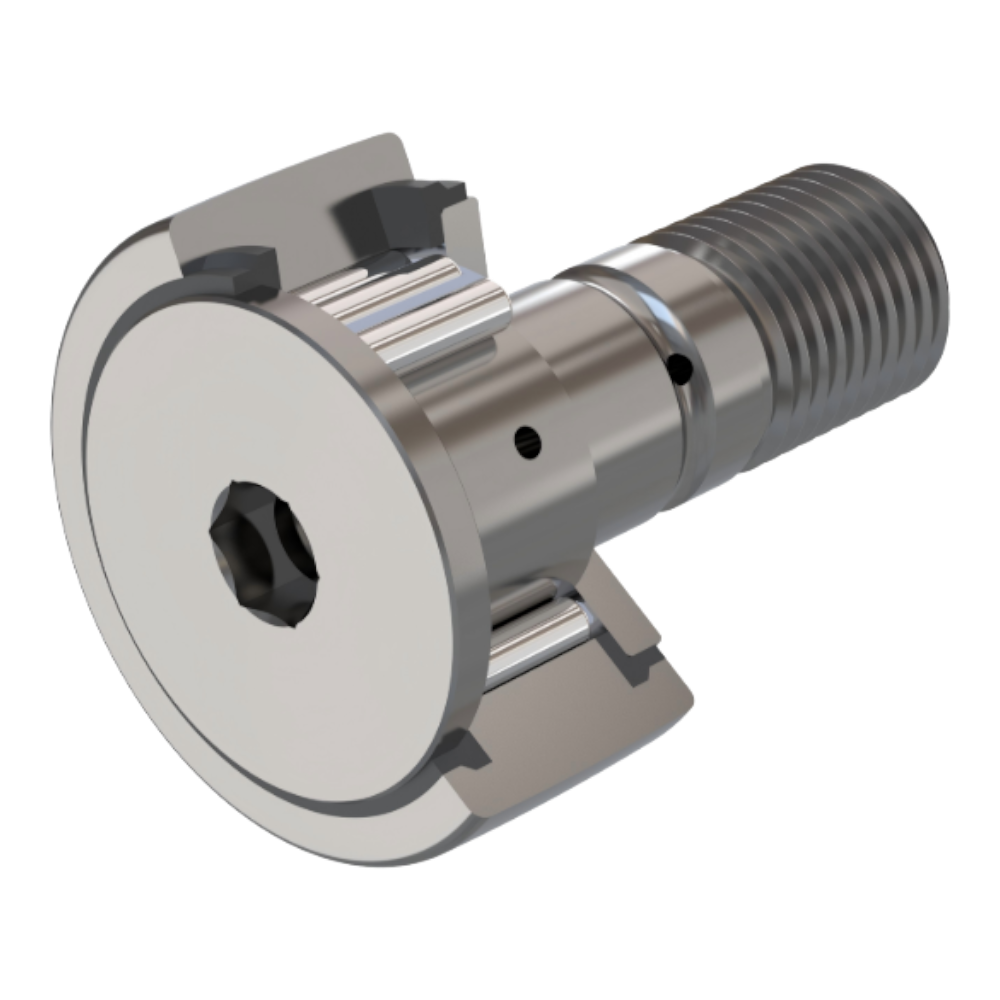

Stud type track roller with needle roller and cage assembly, relubrication hole at flange end.

Get A QuoteDownload
动态图片

Dimensions

D
16 mm
d1 h7
6 mm
B
28 mm
B1 max
12.2 mm
C
11 mm
B2
16 mm
B3
—
C1
0.6 mm
rmin
0.15 mm
d2
12.5 mm
d3
—
G
M6(X1) mm
LG
8 mm
W2)
—
Eccentric locking collar de h9
9 mm
Eccentric locking collar Be
7 mm
Eccentric locking collar e
0.5 mm
动态图片

Technical Specification

Press—fit Lube nozzle
NIPA1 —
Tightening torque MA
3 Nm
Basic dynamic load rating Crw
3140 N
Fatigue load limit Curw
440 N
Basic static load rating C0rw
3300 N
Rotating speed nDG
13000 r/min
British system
CF 6 —
Mass
0.018 Kg

Download

Dimensions

D
16  mm
d1h7
6  mm
B
28  mm
B1 max
12.2  mm
B2
16  mm
B3
-  mm
C
11  mm
C1
0.6  mm
r/min
0.15  mm
d2
12.5  mm
d3
-  mm
G
M6(X1)  mm
LG
8  mm
W2)
-  mm
Eccentric sleeve de h9
9  mm
Eccentric sleeve Be
7  mm
Eccentric sleeve e
0.5  mm

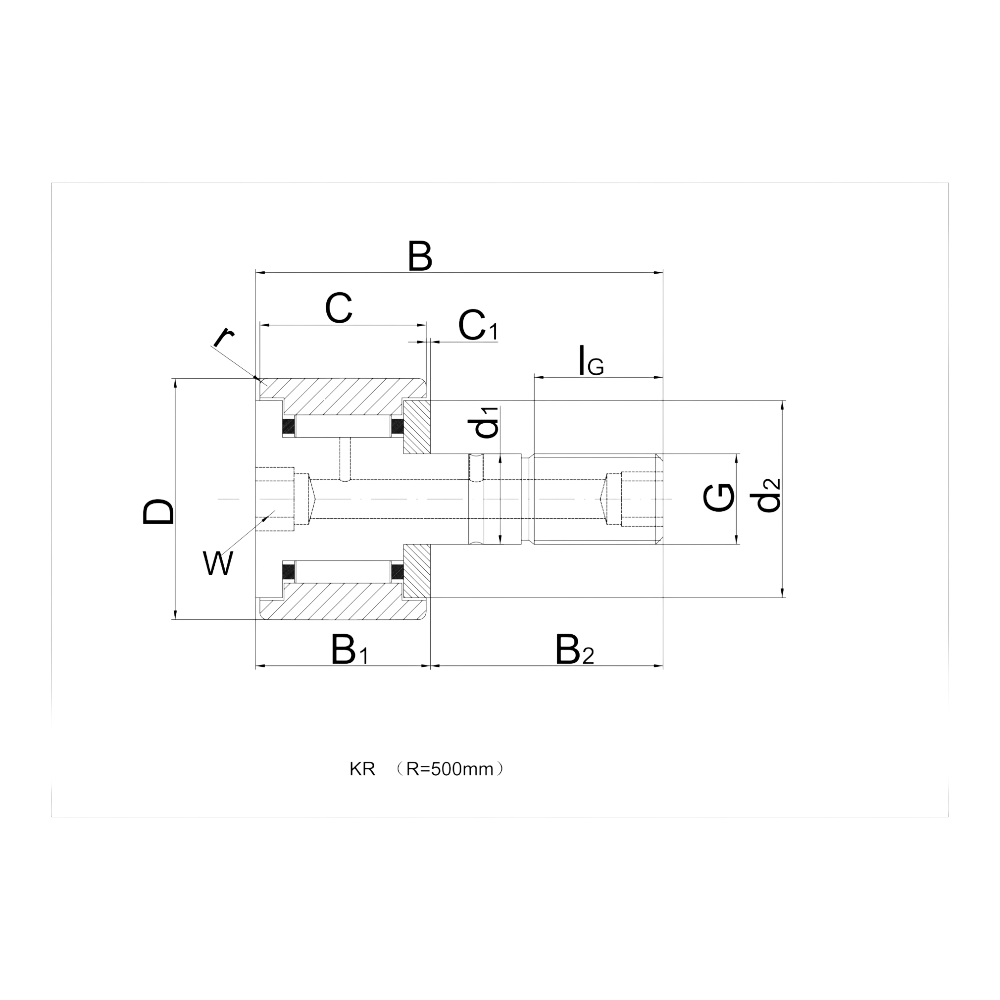

BCC1lgDGd2d1B1B2rWKR..-PP  (R=500mm )

Technical
Specification

Grease fitting
NIPA1
Tightening torque MA
3  Nm
Basic dynamic load rating Crw
3140  N
Basic static load rating Corw
3300  N
Fatigue load limit  Curw
440  N
Rotating speed  nDG
13000  r/min
Mass
0.018  KG

Download

HD Power Station ValveHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve SamplesHD Power Station Valve Samples

Dimensions

D
16 mm
d1 h7
6 mm
B
28 mm
B1 max
12.2 mm
C
11 mm
B2
16 mm
B3
—
C1
0.6 mm
rmin
0.15 mm
d2
12.5 mm
d3
—
G
M6(X1) mm
LG
8 mm
W2)
—
Eccentric locking collar de h9
9 mm
Eccentric locking collar Be
7 mm
Eccentric locking collar e
0.5 mm

Technical Specification

Press—fit Lube nozzle
NIPA1 —
Tightening torque MA
3 Nm
Basic dynamic load rating Crw
3140 N
Fatigue load limit Curw
440 N
Basic static load rating C0rw
3300 N
Rotating speed nDG
13000 r/min
British system
CF 6 —
Mass
0.018 Kg
