012.75.4500

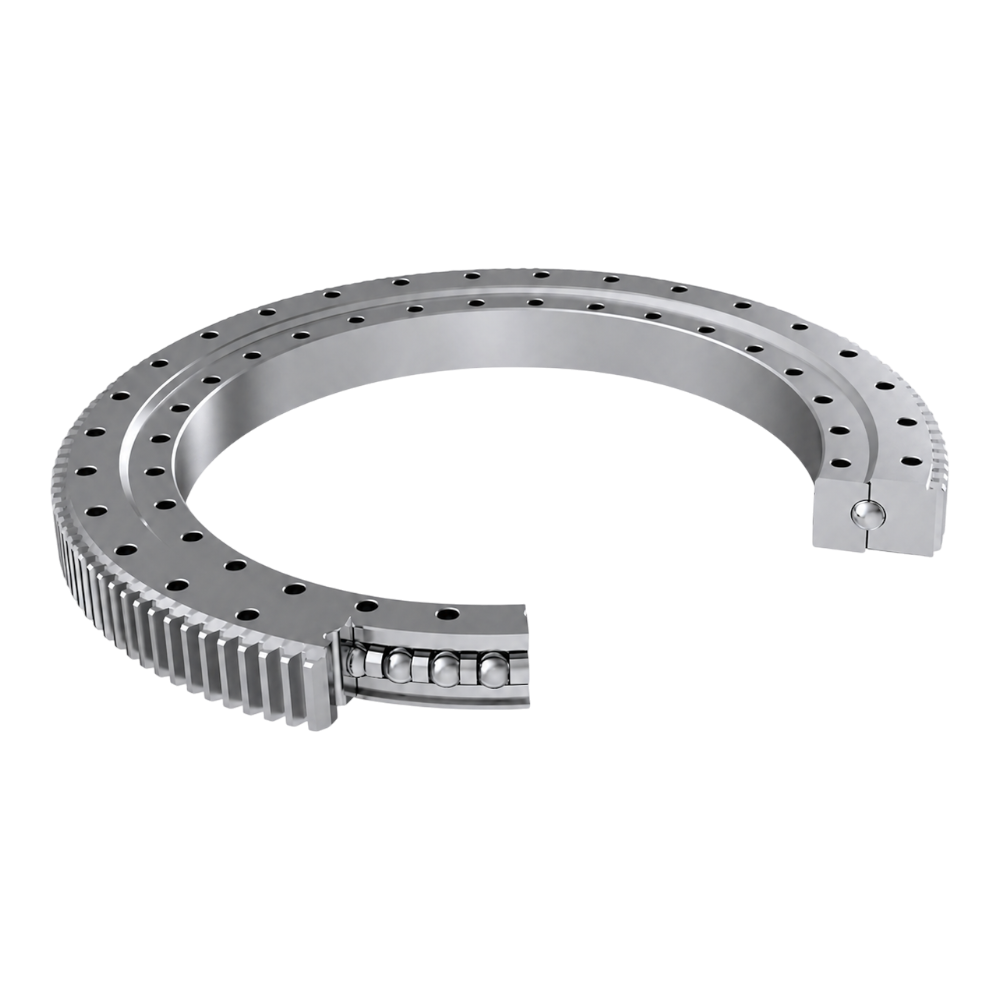

Four-point contact ball slewing ring

Four-point contact ball bearings are radial single row angular contact ball bearings with raceways that are designed to support two-directional axial loading

Get A Quote Download

动态图片

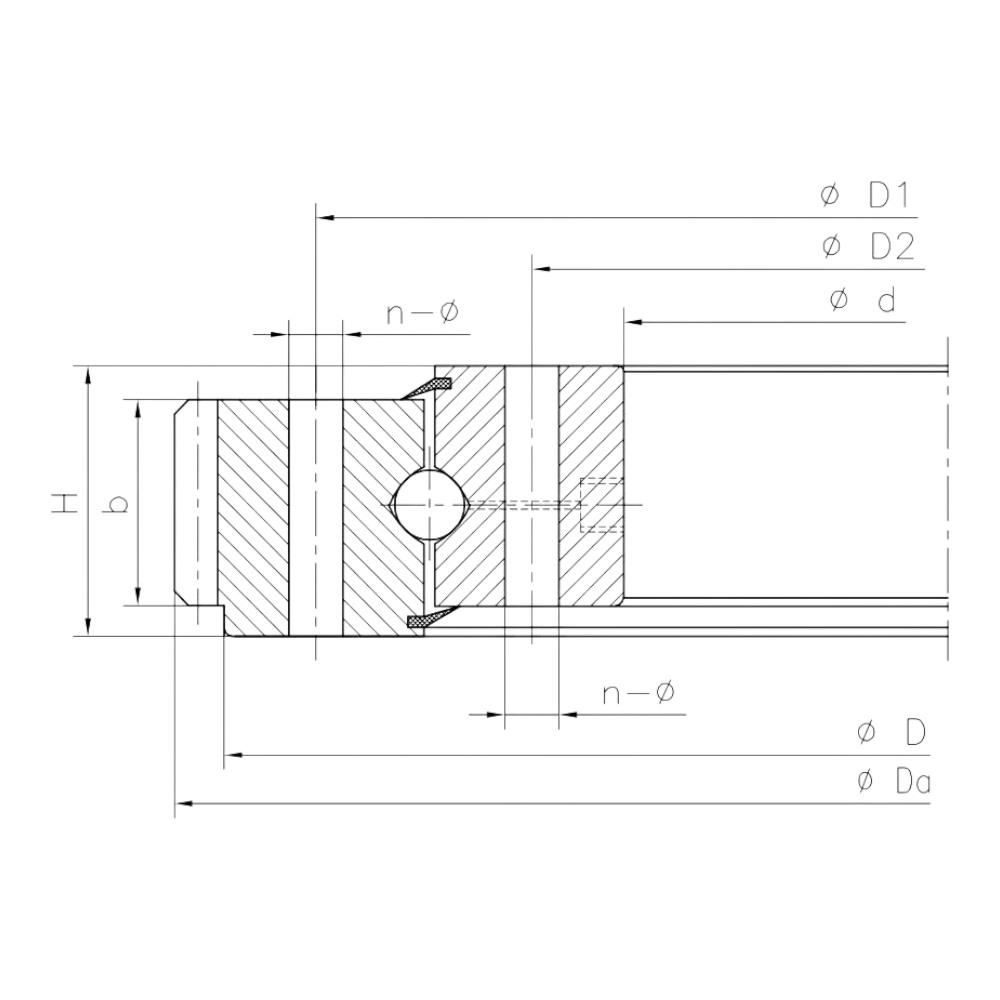

Dimensions

D

4726 mm

d

4272 mm

H

174 mm

H1

162 mm

h

12 mm

D1

4636 mm

D2

4364 mm

n

60

φ

45 mm

动态图片

Technical Specification

m

25

da

—

Da

4845

Z

191

b

150 mm

x

0.5

Mass

4240 Kg

Download

Dimensions

D: 16 mm
d1h7: 6 mm
B: 28 mm
B1 max: 12.2 mm
B2: 16 mm
B3: - mm
C: 11 mm
C1: 0.6 mm
r/min: 0.15 mm
d2: 12.5 mm
d3: - mm
G: M6(X1) mm
LG: 8 mm
W2): - mm
Eccentric sleeve de h9: 9 mm
Eccentric sleeve Be: 7 mm
Eccentric sleeve e: 0.5 mm

Technical
Specification

Grease fitting: NIPA1
Tightening torque MA: 3 Nm
Basic dynamic load rating Crw: 3140 N
Basic static load rating Corw: 3300 N
Fatigue load limit Curw: 440 N
Rotating speed nDG: 13000 r/min
Mass: 0.018 KG

Download

HD Power Station Valve HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples

General

Gear Type

External

Technical Specification

m

25

da

—

Da

4845

Z

191

b

150 mm

x

0.5

Mass

4240 Kg

Dimensions

D

4726 mm

d

4272 mm

H

174 mm

H1

162 mm

h

12 mm

D1

4636 mm

D2

4364 mm

n

60

φ

45 mm
