012.60.2800

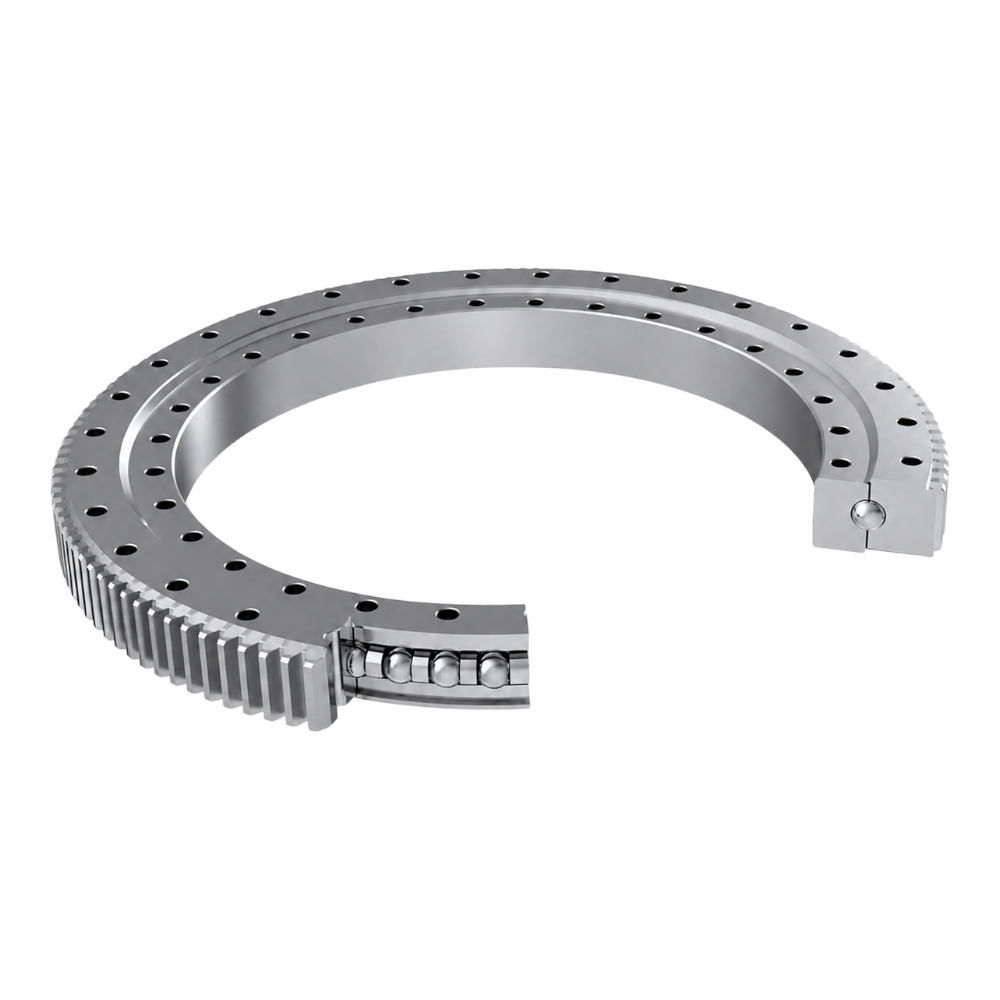

Four-point contact ball slewing ring

Four-point contact ball bearings are radial single row angular contact ball bearings with raceways that are designed to support two-directional axial loading

Get A Quote Download

动态图片

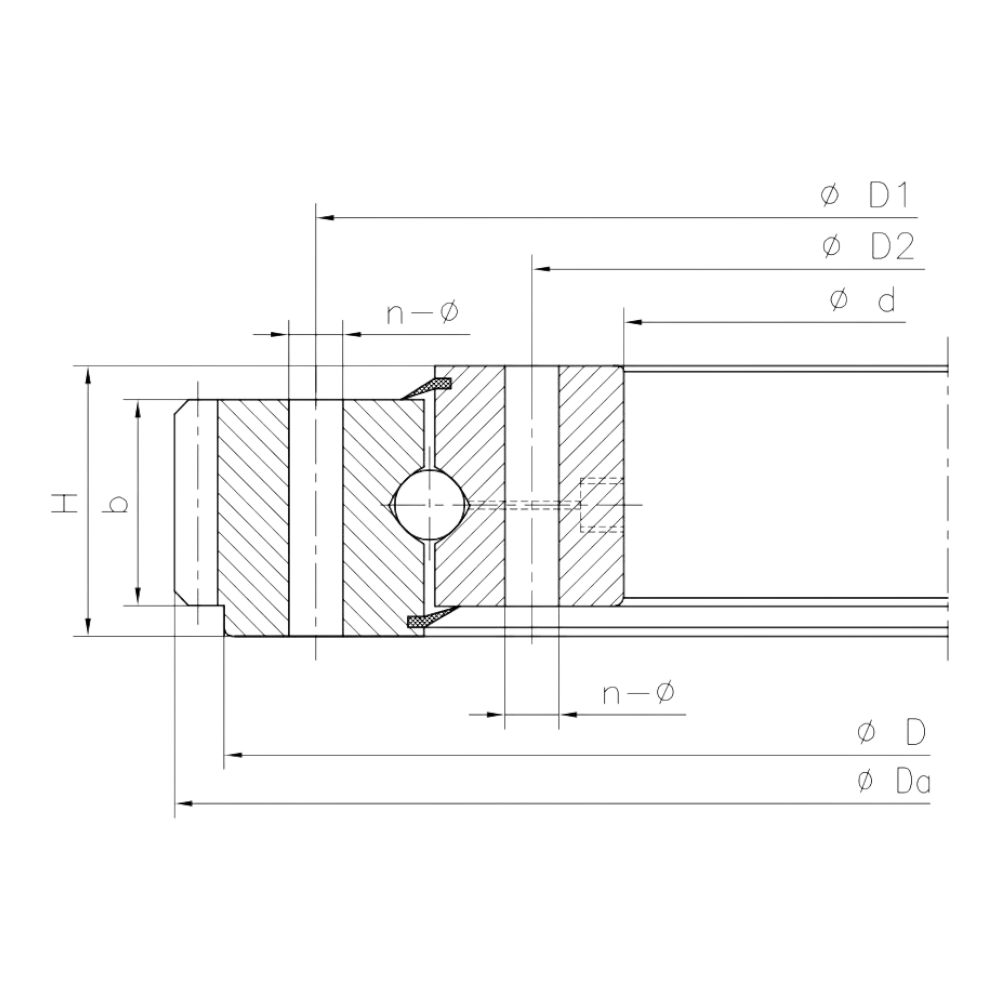

Dimensions

D

2978 mm

d

2625 mm

H

144 mm

H1

132 mm

h

12 mm

D1

2910 mm

D2

2691 mm

n

56

φ

33 mm

动态图片

Technical Specification

m

20

da

—

Da

3076

Z

151

b

120 mm

x

0.5

Mass

1680 Kg

Download

Dimensions

D: 16 mm
d1h7: 6 mm
B: 28 mm
B1 max: 12.2 mm
B2: 16 mm
B3: - mm
C: 11 mm
C1: 0.6 mm
r/min: 0.15 mm
d2: 12.5 mm
d3: - mm
G: M6(X1) mm
LG: 8 mm
W2): - mm
Eccentric sleeve de h9: 9 mm
Eccentric sleeve Be: 7 mm
Eccentric sleeve e: 0.5 mm

Technical
Specification

Grease fitting: NIPA1
Tightening torque MA: 3 Nm
Basic dynamic load rating Crw: 3140 N
Basic static load rating Corw: 3300 N
Fatigue load limit Curw: 440 N
Rotating speed nDG: 13000 r/min
Mass: 0.018 KG

Download

HD Power Station Valve HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples HD Power Station Valve Samples

General

Gear Type

External

Technical Specification

m

20

da

—

Da

3076

Z

151

b

120 mm

x

0.5

Mass

1680 Kg

Dimensions

D

2978 mm

d

2625 mm

H

144 mm

H1

132 mm

h

12 mm

D1

2910 mm

D2

2691 mm

n

56

φ

33 mm
