ZKLF Series Description:
THB ZKLF series Ball screw support bearings have been improved to exceed new industrial demands for high precision and high speed requirements.
Product List
DesignationShaft Diameter
(mm)
Mass (kg)Dimensions d
(mm)
Dimensions D
(mm)
Dimensions B
(mm) -0.25
Dimensions D1
(mm) -0.01
Dimensions d2
(mm)6.5
Chamfer r
(min)
Chamfer r1
(min)
Dimensions d1
(mm)
Dimensions I
(mm) min
Dimensions J
(mm)
Dimensions b
(mm)

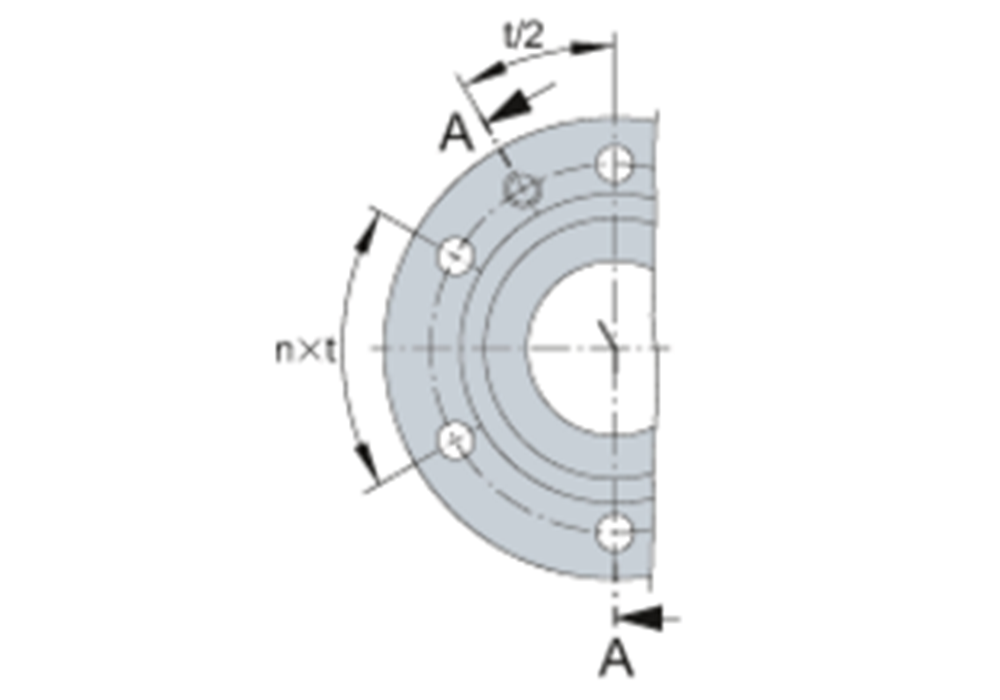

Pitch t
Qty×t
SetboltsSetbolts QtyBasic Load Ratings
Cr Dynamic (KN)
Basic Load Ratings
Cor Dynamic (KN)
Limiting Speed
Grease (rpm)
ZKLF 1255.2RS 12 0.37 12 55 25 33.5 6.5 0.3 0.6 25.0 17 42 3 3×120° M 6 3 17.0 24.7 3800
ZKLF 1255.2Z 12 0.37 12 55 25 33.5 6.5 0.3 0.6 25.0 17 42 3 3×120° M 6 3 17.0 24.7 7600
ZKLF 1560.2RS 15 0.43 15 60 25 36 6.5 0.3 0.6 28.0 17 46 3 3×120° M 6 3 17.9 28 3500
ZKLF 1560.2Z 15 0.43 15 60 25 36 6.5 0.3 0.6 28.0 17 46 3 3×120° M 6 3 17.9 28 7000
ZKLF 1762.2RS 17 0.45 17 62 25 38 6.5 0.3 0.6 30.0 17 48 3 3×120° M 6 3 18.8 31 3300
ZKLF 1762.2Z 17 0.45 17 62 25 38 6.5 0.3 0.6 30.0 17 48 3 3×120° M 6 3 18.8 31 6600
ZKLF 2068.2RS 20 0.61 20 68 28 44 6.5 0.3 0.6 34.5 19 53 3 4×90° M 6 4 26.0 47 3000
ZKLF 2068.2Z 20 0.61 20 68 28 44 6.5 0.3 0.6 34.5 19 53 3 4×90° M 6 4 26.0 47 5400
ZKLF 2575.2RS 25 0.72 25 75 28 49 6.5 0.3 0.6 40.5 19 58 3 4×90° M 6 4 27.5 55 2600
ZKLF 2575.2Z 25 0.72 25 75 28 49 6.5 0.3 0.6 40.5 19 58 3 4×90° M 6 4 27.5 55 4700
