ZKLDF Series Description:

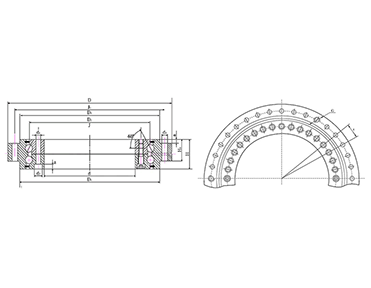

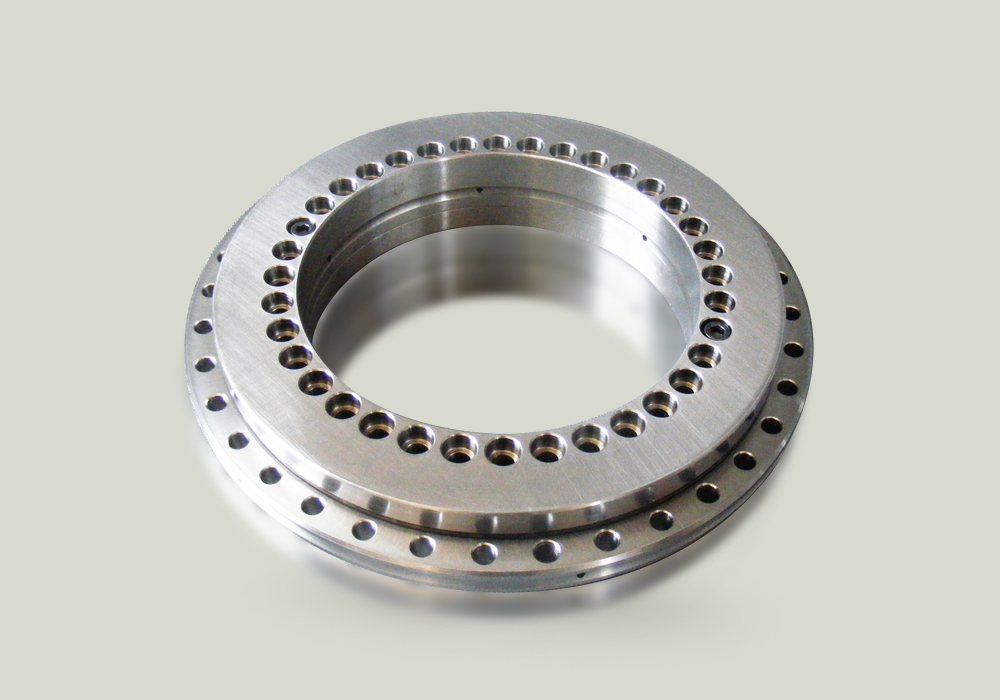

THB ZKLDF axial angular contact ball bearings series THB ZKLDF axial angular contact ball bearings series, also can bear combined load, with high speed and low frictional torque, at the same time it can ensure high rotary precision. ZKLDF bearings can be applicated to high speed rotary worktable, milling, grinding, honing head and precision measuring instruments. ZKLDF axial angular contact ball bearing series have a unity outer ring, 2 inner rings, 2 rows of ball rollers and cage assembly. The contact angle is 60°. The outer ring and inner rings have fitting holes and easy to fit by joint bolt. The unit is located by means of retainning screws for the safety of transport and handling. THB ZKLDF axial angular contact ball bearing series have 2 seals on both sides. This is designed for against dirt, impurities and avoid grease leak, etc.
Product List
Part NumberDimension (d)
(mm)
Dimension (D)
(mm)
Dimension (H)
(mm)
Dimension (H1)
(mm)
Dimension (D1)
(mm)
Dimension (D2)
(mm)
Dimension (D3)
(mm)
Dimension (J)
(mm)
Dimension (J1)
(mm)
Dimension (a)
(mm)
The fixing hole
(The inner ring)
(d1) (mm)
The fixing hole
(The inner ring)
(d2) (mm)
QTY3)1The fixing hole
(The inner ring)
(d3) (mm)
QTY3)2Screw connection
QTY
Connection screw
holes G
Connection screw
holes QTY
Pitch1)tTightening torque
of screw
Basicrated load (Axial)
(dyn) (sta) (KN)
Limited speed4)
(r/min)
Bearing friction
torque1
Bearing friction
torque2 (Nm)
Weight (kg)
ZKLDF100 100 185 38 25 160 136 158 112 170 5.4 5.6 10 16 5.6 15 2 M5 3 18×20o 8.5 67-251 2800 1.6 1.6 4.5
ZKLDF120 120 210 40 26 184 159 181 135 195 6.2 7 11 22 7 21 2 M8 3 24×15o 14 72-315 2400 2 2 6
ZKLDF150 150 240 40 26 214 188 211 165 225 6.2 7 11 34 7 33 2 M8 3 36×10o 14 76-365 2000 3 3 7.5
ZKLDF200 200 300 45 30 274 243 271 215 285 6.2 7 11 46 7 45 2 M8 3 48×7.5o 14 112-550 1600 4.5 4.5 11
ZKLDF260 260 385 55 36.5 345 313 348 280 365 8.20 9.30 15 34 9.30 33 2 M12 3 36×10o 34 155-920 1200 7.5 7.5 22
ZKLDF325 325 450 60 40 415 380 413 342 430 8.20 9.30 15 34 9.30 33 2 M12 3 36×10o 34 165-1110 1000 11 11 28
ZKLDF395 395 525 65 42.5 486 450 488 415 505 8.20 9.30 15 46 9.30 45 2 M12 3 48×7.5o 34 214-1470 800 16 16 39
ZKLDF460 460 600 70 46 560 520 563 482 580 8.20 9.30 15 46 9.30 45 2 M12 3 48×7.5o 34 255-1860 700 21 21 50
ZKLDF580 580 750 90 60 702 656 700 610 720 11 11.4 18 45 11.4 42 3 M12 6 48×7.5o 68 395-3180 500 40 40 82
Total 1 Page 9 Records
