Thrust ball bearings, single direction, with a sphered housing washer
Thrust Ball Bearings, Single Direction, With A Sphered Housing Washer
Thrust Ball Bearings, Single Direction, With A Sphered Housing Washer Description:

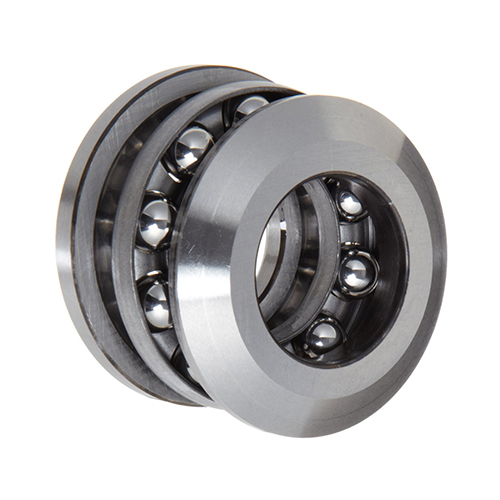

THB Thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. Cages: brass or steel materails are both available.
Product List

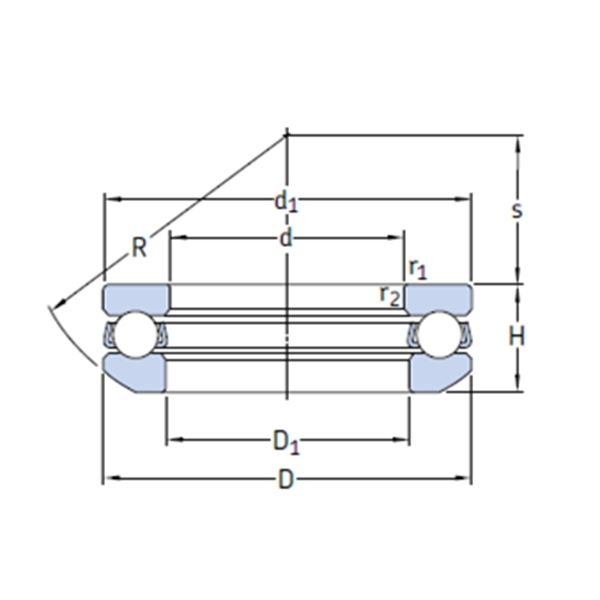

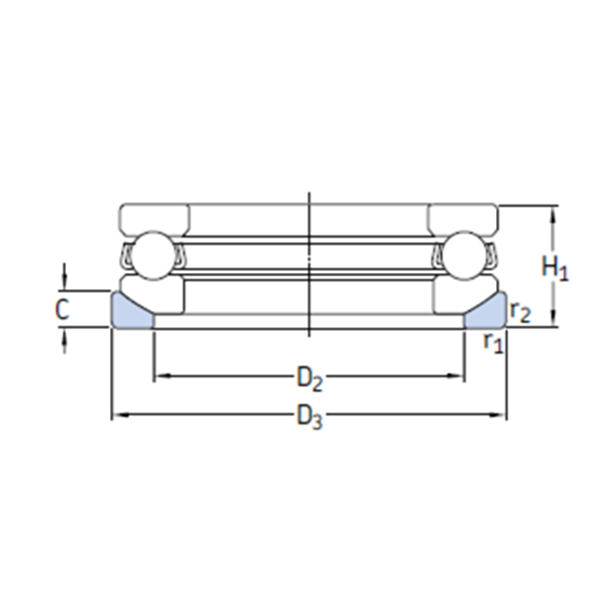

DesignationSeat washerPrincipal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(H1) (mm)
Basic load ratings
(dynamic) (C )
(KN)
Basic load ratings
(static) (C0) (KN)
Fatigue load
limit (Pu)
(KN)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)
53201 U 201 12 28 13 13.034 20.384 0.765 8 000 11 000 0.045
53202 U 202 15 32 15 15.582 24.5 0.915 7 000 10 000 0.063
53203 U 203 17 35 15 15.974 26.46 1 6 700 9 500 0.071
53204 U 204 20 40 17 20.776 36.75 1.4 5 600 8 000 0.1
53205 U 205 25 47 19 25.97 49 1.86 5 000 7 000 0.15
53206 U 206 30 52 20 24.598 49.98 1.86 4 500 6 300 0.18
53306 U 306 30 60 25 35.084 64.19 2.4 3 800 5 300 0.33
53207 U 207 35 62 22 34.398 72.03 2.7 4 000 5 600 0.28
53307 U 307 35 68 28 48.412 94.57 3.55 3 200 4 500 0.46
53208 U 208 40 68 23 43.316 94.57 3.6 3 600 5 300 0.35
Total 5 Page 47 Records 12345
