Thrust ball bearings, double direction
Thrust Ball Bearings, Double Direction
Thrust Ball Bearings, Double Direction Description:

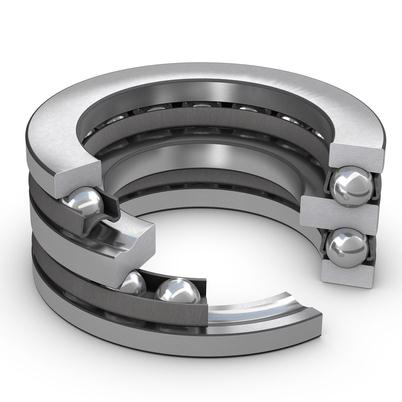

THB Thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load. Cages: brass or steel materails are both available.
Product List

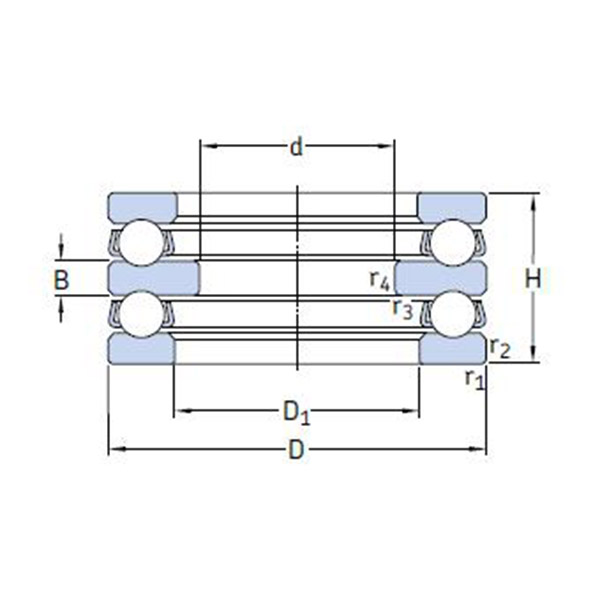

DesignationPrincipal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(H1)
Basic load ratings
(dynamic) (C )
(KN)
Basic load ratings
(static) (C0) (KN)
Fatigue load
limit (Pu)
(KN)
Minimum load
factor (A)
Speed ratings
(Reference speed)
(r/min)
Speed ratings (
Limting speed) (r/min)
Mass (kg)
52202 10 32 22 15.423 24.25 1 0.0038 7 000 10 000 0.081
52204 15 40 26 20.564 36.375 1.4 0.008500 4 300 6 000 0.15
52205 20 47 28 25.705 48.5 1.86 0.015 3 800 5 300 0.22
52305 20 52 34 33.465 58.2 2.24 0.018 3 200 4 500 0.33
52406 20 70 52 68.09 118.34 4.5 0.097 2 200 3 200 1
52206 25 52 29 23.959 45.105 1.86 0.013 3 600 5 000 0.25
52306 25 60 38 34.726 63.535 2.4 0.026 2 800 4 000 0.47
52407 25 80 59 73.82 132.89 5.1 0.15 2 000 2 800 1.45
52207 30 62 34 34.047 71.295 2.7 0.028 3 000 4 300 0.41
52208 30 68 36 42.874 93.605 3.6 0.058 2 800 3 800 0.55
Total 5 Page 45 Records 12345
