SL18 18, SL18 22, SL18 29, SL18 30, SL19 series
SL18 18, SL18 22, SL18 29, SL18 30, SL19 Series
SL18 18, SL18 22, SL18 29, SL18 30, SL19 Series Description:

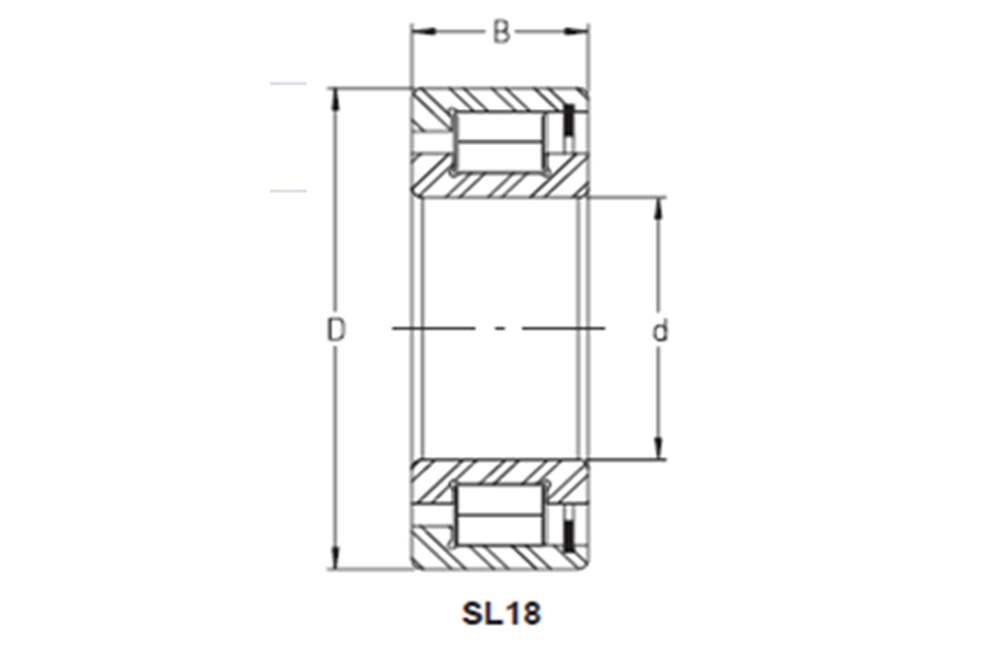

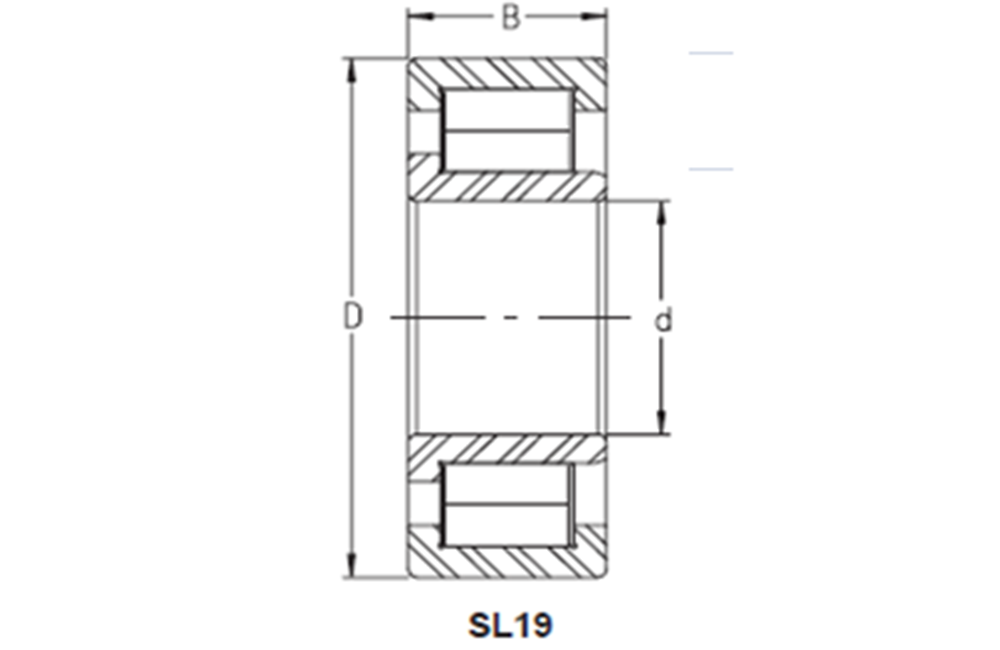

THB SL18&SL19 series Single row full complement cylindrical roller bearings have solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Features: - More suitable for low speeds application - Single row, Semi-locating - SL18(double flanged inner rings), SL19(double flanged outer rings) Application: rope sheaves
Product List
PARTNUMBERSHAFT (d)
(mm)
OUTER RING
DIA (D)
(mm)
BEARING WIDTH
(B) (mm)
WEIGHT PER
PIECE (kg)
DYN. CAP.
(C) (KN)
STAT.CAP. (C0)
(KN)
SPEED LIMIT
OIL (rpm)
SL18 3004 20 42 16 0.11 26.4 25.44 10000
SL18 2204 20 47 18 0.16 39.36 36 9500
SL18 3005 25 47 16 0.12 30.24 31.2 9000
SL18 2205 25 52 18 0.18 44.16 43.2 8500
SL19 2305 25 62 24 0.37 60.48 54.72 7500
SL18 3006 30 55 19 0.2 38.88 41.28 7500
SL18 2206 30 62 20 0.3 58.56 60.48 7000
SL19 2306 30 72 27 0.56 83.52 81.6 6500
SL18 3007 35 62 20 0.26 47.52 52.8 6500
SL18 2207 35 72 23 0.44 72.96 73.92 6000
Total 14 Page 131 Records 1234567891011 End
