Cylindrical Roller Bearing

Compared with ball bearings, cylindrical roller bearings have higher radial load capacity. The design of cylindrical rolling elements also allows such bearings to accept relatively faster speeds than other forms of roller bearings.

Cylindrical roller bearings produced by THB Bearings, a cylindrical roller bearing types supplier owning its own cylinder roller bearing factory, have many designs, series, and sizes. The main design difference between the cylindrical roller bearing types is as follows.

-The number of roller columns (one, two or four)

-The type of cages (with, without or with special design).

As one of the most professional and experienced cylinder roller bearing manufacturers&suppliers in China, THB Bearings has its own cylinder roller bearing factory to ensure the quality of our products. So far, we have single-row cylinder roller bearings, double-row cylinder roller bearings, and face-point cylinder roller bearings for sale. Click and learn more info about cylinder roller bearings.


Types of Cylindrical Roller Bearing

Single Row Cylindrial Roller Bearing

Single-row cylindrical roller bearings are usually only subjected to radial force. Compared with ball bearings of the same size, its radial bearing capacity is increased by 1.5-3 times, with good rigidity and impact resistance. Single row cylindrical roller bearings with unidirectional or bidirectional axial force structures can also be chosen to meet your needs.

Double Row Cylindrical Roller Bearing

Double row cylindrical roller bearings have two structures: cylindrical bore and tapered bore. Double row cylindrical roller bearings have the advantages of compact structure, high rigidity, heavy bearing capacity.

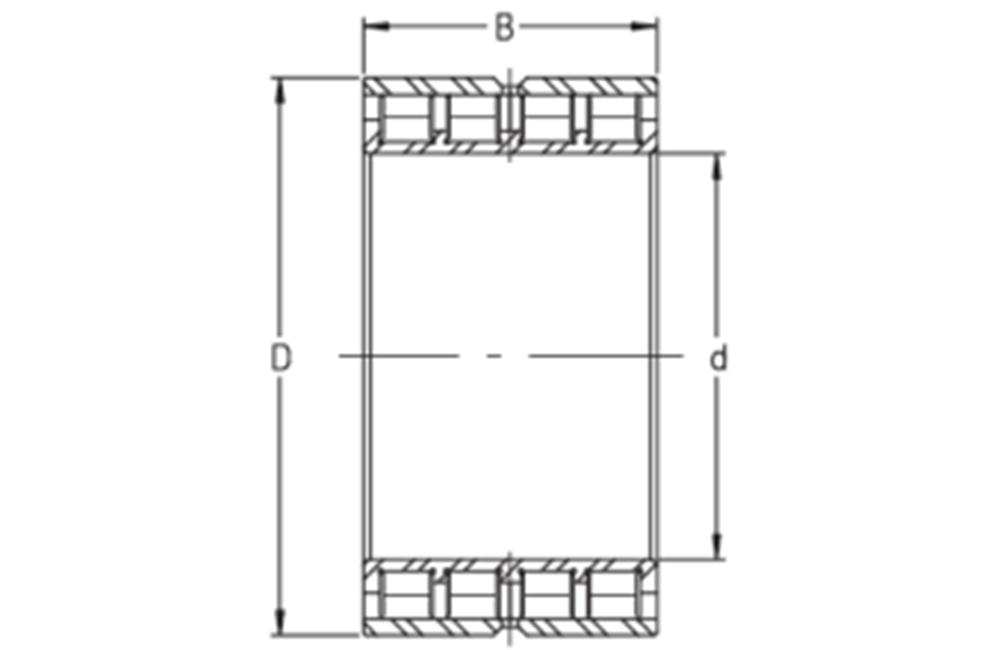

Four-point Cylindrical Roller Bearing

Four-row cylindrical roller bearings are usually separated type, with heavy load capacity, mainly bear radial load, and are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery and other industries.


Cylindrical Roller Bearing Types


THB Bearings is a professional cylindrical roller bearing types supplier with its own cylinder roller bearing factory. We can produce different types of cylindrical roller bearings according to customers' needs. Cylindrical rollers and raceways are linear contact bearings. With huge load capacity, cylindrical roller bearing mainly bears radial load. The friction between the rolling element and the retaining edge of the ring is small, which is suitable for high-speed rotation. According to whether the ring has ribs, it can be divided into single row cylindrical roller bearings such as NU, NJ, NUP, N, NF, and double row cylindrical roller bearings such as NNU and NN. Cylindrical roller bearing has a separable structure with inner ring and outer ring.

Cylindrical roller bearings without ribs on the inner ring or outer ring, the inner ring and outer ring can move relative to the axial direction, so it can be used as a free end bearing. Cylindrical roller bearings with double ribs on one side of the inner ring and outer ring and a single rib on the other side of the ring, can bear a certain degree of axial load in one direction. Generally, stamping steel cages or solid cages made of copper alloy cars are used.

Cylindrical roller bearings are separable bearings, which are very convenient for installation and disassembly. Cylindrical roller bearings can withstand larger radial loads and are suitable for use in high-speed running situations.

This type of bearing allows a very small angular error (inclination) between the axis of the inner ring and the axis of the outer ring, only 2'~4'. Therefore, the machining accuracy of the shaft and the bearing seat is relatively high. Otherwise, uneven load or stress concentration is likely to occur in the contact part of the raceway. But after correcting the roller or raceway contact bus bar, the occurrence of stress concentration can be reduced.

Cylindrical roller bearings can be divided into single-row, double-row and multi-row cylindrical roller bearings according to the number of rows of rolling elements. Bearings of different structures are also shown in the design of the position of the ribs. Among them, the commonly used cylindrical roller bearings have the following forms.


Cylindrical Roller Bearing Features

  • Roller and raceway are in linear contact or curved contact after modification, with large radial bearing capacity, suitable for bearing heavy loads and impact loads.

  • The friction coefficient is small, suitable for high speed, and the limit speed is close to the deep groove ball bearing.

  • The N type and NU type can move axially, can adapt to the change of the relative position between the shaft and the housing caused by thermal expansion or installation error, and can be used as a free end support.

  • The processing requirements for the shaft or the seat hole are high, and the relative deflection of the outer ring axis after the cylindrical roller bearing is installed must be strictly controlled to avoid contact stress concentration.

  • The inner ring or outer ring can be separated for easy installation and disassembly.


Cylindrical Roller Bearing VS Deep Groove Ball Bearing

The main difference between the two types of bearings lies in rolling elements, one is spherical rolling element, the other is cylindrical rolling element. It is precisely because the following differences between them have occurred.

  • Different bearing capacity: the contact surface of spherical rolling element and cylindrical rolling element is different. The spherical contact surface is a point, while the cylindrical contact surface is a line. Therefore, under the same size, the radial bearing capacity of cylindrical roller bearings is greater than that of deep groove ball bearings.

  • Different speeds: Because the contact surfaces of the rolling elements of the two bearings are different, their speeds are also different. The larger the contact surface is, the slower the relative speed is. Therefore, deep groove ball bearings with spherical rolling elements have an advantage in speed.

  • The noise is different: When the speed of the bearing of the same size is the same, the noise of the cylindrical roller bearing is greater than that of the deep groove ball bearing. This is also because the friction caused by the different contact surfaces of the rolling elements of the two bearings is different. The greater the friction surface, the greater the noise.

The difference between them is due to their different rolling elements. This also confirms one thing: every component in the bearing is an important part of its overall structure. Bearing products are composed of different structures and different components have different characteristics.



Cylindrical Roller Bearings: Components and Uses

Cylindrical roller bearings are an essential component of many industrial applications, offering high radial load capacity and moderate thrust load capacity. These bearings are widely used in various fields, from electric motors and gearboxes to machine tools and paper machines. In this article, we will take a closer look at the components and uses of cylindrical roller bearings.


Components of Cylindrical Roller Bearings Cylindrical roller bearings are composed of several key components, including the outer raceway, inner raceway, rollers, cage, and lubrication.


  • The outer raceway is the outer ring of the bearing that holds and guides the rollers. It is typically made of steel and features a smooth surface to minimize friction.

  • The inner raceway is the inner ring of the bearing that holds and guides the rollers. Like the outer raceway, it is usually made of steel and has a smooth surface.

  • Rollers are cylindrical-shaped rolling elements that support the radial load of the bearing. They are typically made of high-grade steel and are precision-ground to ensure a high level of accuracy and consistency.

  • The cage is the component that keeps the rollers evenly spaced and separated, preventing them from rubbing against each other. It is typically made of brass, steel, or synthetic material.

  • Lubrication is essential to ensure the proper function of cylindrical roller bearings. Grease or oil is used to reduce friction and heat generated by the bearing, prolonging its lifespan and improving its overall performance.


Uses of Cylindrical Roller Bearings Cylindrical roller bearings are widely used in various industries, including:


  • Electric Motors Cylindrical roller bearings are commonly used in electric motors to support the rotor and handle radial loads. They are often used in motors with high radial loads, such as those used in industrial applications.

  • Gearboxes Cylindrical roller bearings are often used in gearboxes to support the gears and handle radial loads. They are particularly useful in applications where space is limited, as they can support heavy loads without taking up too much space.

  • Machine Tools Cylindrical roller bearings are used in machine tools such as lathes and milling machines to support the spindle and handle radial loads. They are preferred over other types of bearings because they can handle heavier loads and provide greater stiffness and accuracy.

  • Paper Machines Cylindrical roller bearings are used in paper machines to support the rollers and handle radial loads. They are particularly useful in applications where high speeds and heavy loads are involved.

  • Railway Applications Cylindrical roller bearings are used in railway applications to support the wheels and handle radial loads. They are preferred over other types of bearings because they can handle high speeds and heavy loads.


In summary, cylindrical roller bearings are a critical component of many industrial applications. They are designed to handle high radial loads and moderate thrust loads and are widely used in industries such as electric motors, gearboxes, machine tools, paper machines, and railway applications. With their various components working together, cylindrical roller bearings can support heavy loads, reduce friction, and ensure the smooth operation of machinery.


Cylindrical Bearing Applications


Cylinder roller bearings, also known as cylindrical roller bearings, are widely used in a variety of applications due to their ability to provide support and reduce friction. They are designed with cylindrical rollers that are closely spaced and arranged parallel to the axis of the bearing. This design allows for high radial load capacity and can handle moderate axial loads as well.


Cylindrical roller bearings are suitable for rigid double-supported short shafts, shafts that cause axial displacement due to thermal elongation, and machine parts that need to be separated for installation and disassembly. Different types of cylindrical roller bearings created by THB Bearings, a professional cylinder roller bearing manufacturer, can meet various demands from customers all over the world. Cylindrical roller bearings are mainly applied in the following industries: large and medium-sized electric motors, rolling stock, machine tool spindles, internal combustion engines, generators, gas turbines, gearboxes, steel rolling mills, and vibrating screens, lifting and transportation machinery. If you have a need for cylindrical roller bearings, welcome to contact us. THB Bearings is your reliable cylindrical roller bearing types supplier.


  • Automotive Industry:

The automotive industry is one of the primary applications of cylinder roller bearings. These bearings are used in various parts of a car, including the engine, transmission, and wheel hubs. In the engine, cylinder roller bearings provide support for the crankshaft and camshaft, reducing friction and allowing for smooth operation. In the transmission, they are used to support the gears and reduce friction during shifting. In the wheel hubs, they provide support for the wheel and axle, allowing for smooth and efficient rotation.

  • Industrial Machinery:

Cylinder roller bearings are commonly used in heavy machinery such as cranes, excavators, and construction equipment. These bearings provide support for the rotating components and help reduce friction, allowing for smoother and more efficient operation. They are also used in conveyor systems, printing presses, and other industrial equipment that requires precise and reliable motion.

  • Aerospace:

In the aerospace industry, cylinder roller bearings are used in aircraft engines, landing gear, and other critical components. These bearings are designed to handle high radial loads and can operate at high speeds, making them ideal for aircraft applications. They are also used in satellite systems and other space applications where reliability is crucial.

  • Wind Turbines:

Cylinder roller bearings are used in wind turbine gearboxes to support the rotor and reduce friction. Wind turbines operate in harsh environmental conditions, including high winds and extreme temperatures, which can cause significant wear on the bearings. Cylinder roller bearings are designed to handle these conditions and provide reliable support for the rotating components.

  • Power Generation:

In power generation applications, cylinder roller bearings are used in turbines and generators to support the rotating components. These bearings are designed to handle high radial loads and can operate at high speeds, making them ideal for power generation applications.

  • Railroad Industry:

The railroad industry is another common application for cylinder roller bearings. These bearings are used in locomotives, freight cars, and passenger trains to provide support and reduce friction. They are designed to handle heavy loads and operate in harsh environmental conditions.

  • Medical Equipment:

Cylinder roller bearings are used in medical devices such as CT scanners and X-ray machines. These bearings provide precise motion and help reduce vibration and noise, making them ideal for medical applications where accuracy and reliability are crucial.

  • Robotics:

In robotics and automation equipment, cylinder roller bearings are used to provide precise movement and support. These bearings are designed to handle high radial loads and can operate at high speeds, making them ideal for robotic applications.


In conclusion, cylinder roller bearings are used in a wide range of applications where high precision and reliability are required. They are designed to handle high radial loads, operate at high speeds, and provide smooth and efficient motion. From the automotive industry to aerospace and medical equipment, cylinder roller bearings play a critical role in many essential applications.


Choose Cylinder Roller Bearings From THB Bearings

THB Bearings is a professional cylindrical roller bearing factory that specializes in providing solutions for a variety of cylindrical roller bearing applications across different industries. As a leading double row roller bearing manufacturer, THB Bearings offers a wide range of cylindrical roller bearing types to meet the specific needs of our customers.


With years of experience in the industry, THB Bearings has become a trusted cylindrical roller bearing manufacturer known for our high-quality products and exceptional customer service. We have a deep understanding of the complexities of cylindrical roller bearing applications and are able to provide customized solutions to meet the unique needs of our clients.


As a reliable cylindrical roller bearing factory, THB Bearings offers a diverse selection of products, including single and double row roller bearings, as well as customized designs to meet the needs of specific industries. Our products are widely used in applications such as automotive, aerospace, and heavy machinery, among others.


Overall, if you're looking for a trusted cylindrical roller bearing types supplier, THB Bearings is a great choice. We offer a wide range of products and can provide customized solutions to meet the specific needs of your industry.
