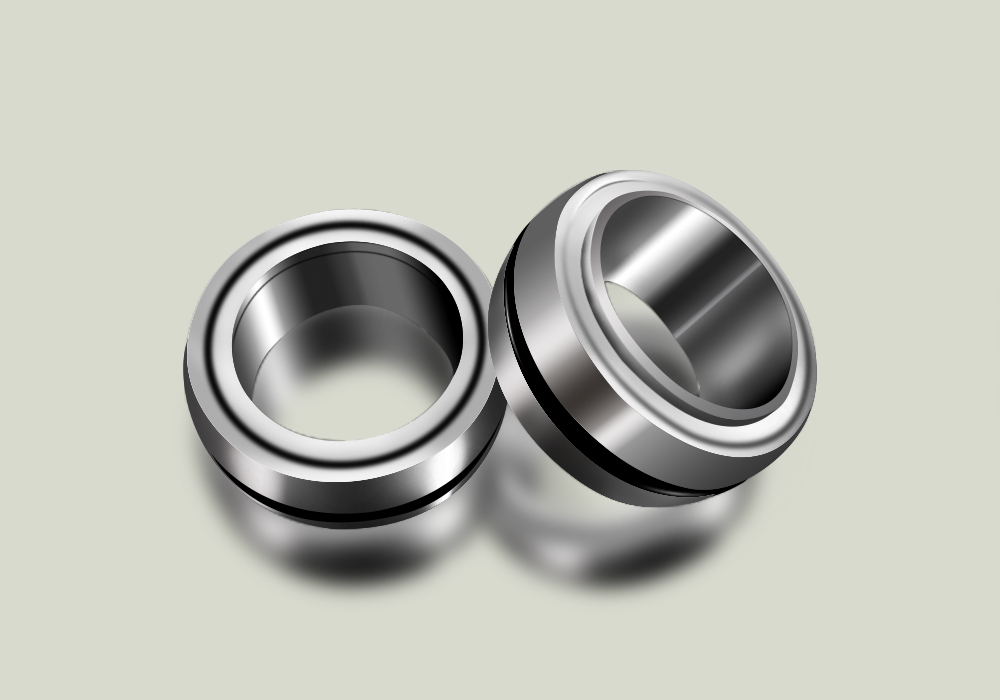

THB SL05...E series Double row full complement cylindrical roller bearings are available in vairous ISO cross sections and design, have the following features:
- for maximum capacity
- with internal seals and snap ring grooves
- available as non-locating, semi-locating and fixed
- more suitable for low speeds application
- spherical OD
Application: rope sheaves

SL05 SERIES


SL05 SERIES Description:
Product List
PART NUMBER | SHAFT (d) (mm) | OUTER RING DIA (D) (mm) | BEARING WIDTH (B) (mm) | WEIGHT PER PIECE (kg) | DYN.CAP. (C) (KN) | STAT.CAP. (C0) (KN) | MATING HOUSING | SPEED LIMIT OIL (rpm) |
SL05 016 E | 80 | 120 | 45 | 1.7 | 165.12 | 288 | GG 51 120 | 1300 |
SL05 018 E | 90 | 140 | 50 | 2.8 | 210.24 | 355.2 | GG 51 140 | 1200 |
SL05 020 E | 100 | 150 | 55 | 3.3 | 268.8 | 470.4 | GG 51 150 | 1100 |
SL05 022 E | 110 | 170 | 60 | 4.9 | 326.4 | 595.2 | GG 51 170 | 950 |
SL05 024 E | 120 | 180 | 60 | 5.2 | 336 | 633.6 | GG 51 180 | 850 |
SL05 026 E | 130 | 200 | 65 | 7.4 | 417.6 | 777.6 | GG 51 200 | 800 |
SL05 028 E | 140 | 210 | 70 | 8.2 | 475.2 | 892.8 | GG 51 210 | 750 |
SL05 030 E | 150 | 225 | 75 | 10 | 518.4 | 979.2 | GG 51 225 | 700 |
SL05 032 E | 160 | 240 | 90 | 13.7 | 633.6 | 1209.6 | GG 51 240 | 650 |
SL05 034 E | 170 | 260 | 95 | 17.4 | 729.6 | 1363.2 | GG 51 260 | 600 |
