SL04 SERIES
SL04 SERIES
SL04 SERIES Description:

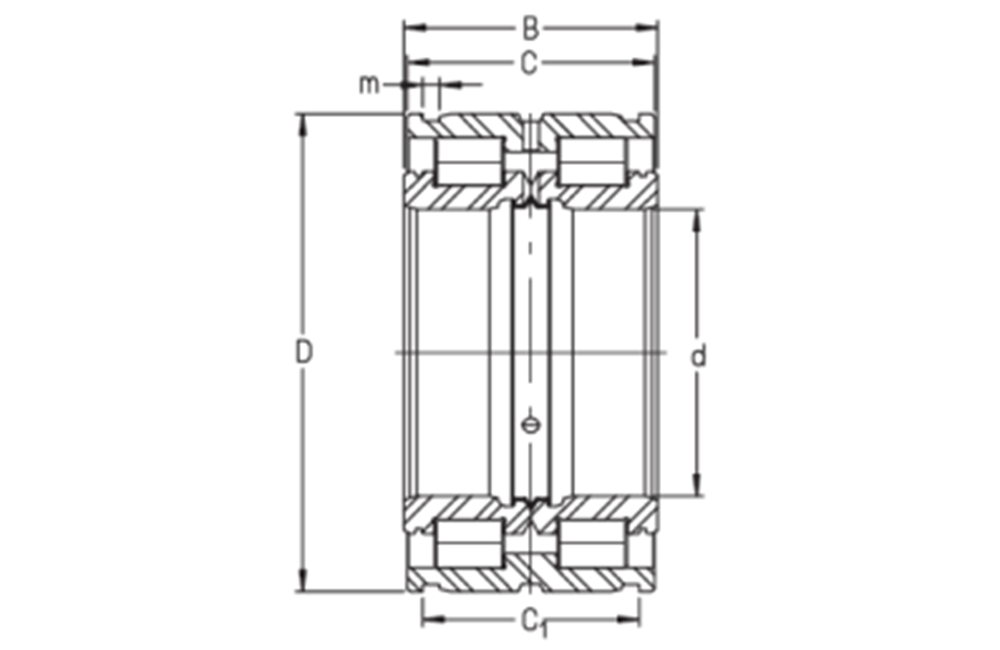

THB SL04 series Double row full complement cylindrical roller bearings are available in vairous ISO cross sections and design, have the following features: - for maximum capacity - with internal seals and snap ring grooves - available as non-locating, semi-locating and fixed - more suitable for low speeds application Application: rope sheaves
Product List
PART NUMBERSHAFT (d)
(mm)
OUTER RING
DIA (D)
(mm)
WIDTH INNER
RING (B)
(mm)
WIDTH OUTER
RING (C)
(mm)
WEIGHT PER
PIECE (kg)
DYN. CAP.
(C) (KN)
STAT. CAP.
(C0) (KN)
GROOVE (C1)
(mm)
GROOVE WIDTH
(mm)
SNAP RINGSPEED LIMIT
OIL (rpm)
SL04 5004 20 42 30 29 0.2 40.255 48.5 24.7 1.8 WRE42 10000
SL04 5005 25 47 30 29 0.24 44.135 57.23 24.7 1.8 WRE47 9000
SL04 5006 30 55 34 33 0.37 50.44 66.93 28.2 2.1 WRE55 7500
SL04 5007 35 62 36 35 0.48 63.05 87.3 30.2 2.1 WRE62 6500
SL04 5008 40 68 38 37 0.56 79.54 109.61 32.2 2.7 WRE68 6000
SL04 5009 45 75 40 39 0.7 95.06 136.77 34.2 2.7 WRE75 5500
SL04 5010 50 80 40 39 0.76 99.91 149.38 34.2 2.7 WRE80 5000
SL04 5011 55 90 46 45 1.18 114.46 174.6 40.2 3.2 WRE90 4500
SL04 5012 60 95 46 45 1.26 119.31 189.15 40.2 3.2 WRE95 4200
SL04 5013 65 100 46 45 1.33 124.16 202.73 40.2 3.2 WRE100 3900
Total 5 Page 45 Records 12345
