THB SL01 series Double row full complement cylindrical roller bearings are available in vairous ISO cross sections and design, have the following features:
- for maximum capacity
- with internal seals and snap ring grooves
- available as non-locating, semi-locating and fixed
- more suitable for low speeds application
Application: rope sheaves

SL01 SERIES

SL01 SERIES Description:
Product List

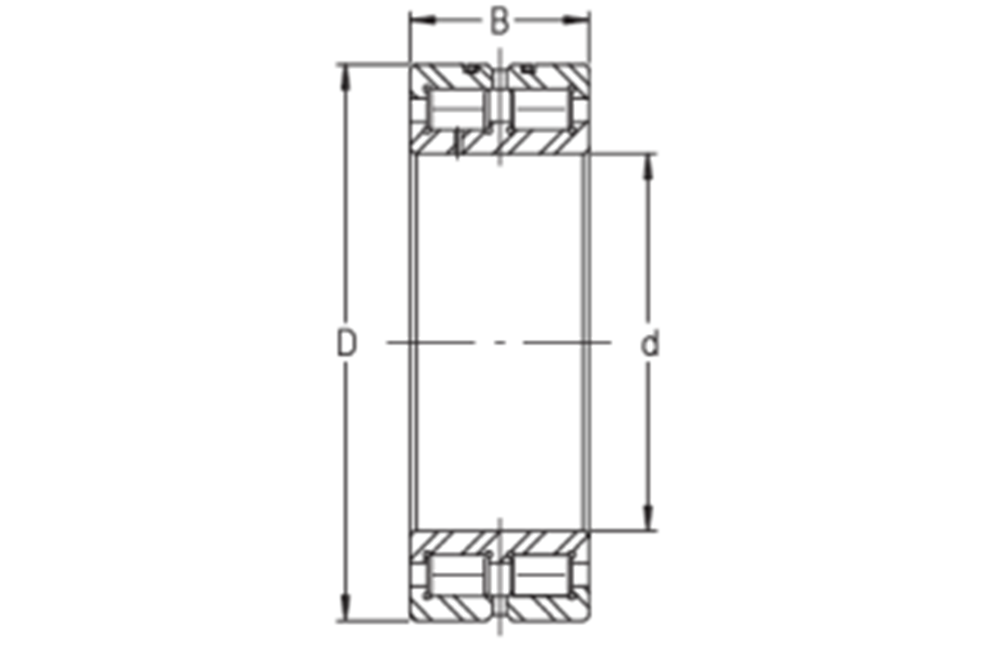

PARTNUMBER | SHAFT (d) (mm) | OUTER RING DIA (D) (mm) | BEARING WIDTH (B) (mm) | WEIGHT PER PIECE (kg) | DYN. CAP. (C) (KN) | STAT.CAP. (C0) (KN) | SPEED LIMIT OIL (rpm) |
SL01 4912 | 60 | 85 | 25 | 0.49 | 64.99 | 111.55 | 4500 |
SL01 4914 | 70 | 100 | 30 | 0.78 | 99.91 | 172.66 | 3800 |
SL01 4916 | 80 | 110 | 30 | 0.88 | 105.73 | 193.03 | 3400 |
SL01 4918 | 90 | 125 | 35 | 1.35 | 144.53 | 271.6 | 3000 |
SL01 4920 | 100 | 140 | 40 | 1.95 | 185.27 | 358.9 | 2700 |
SL01 4922 | 110 | 150 | 40 | 2.15 | 192.06 | 388 | 2500 |
SL01 4924 | 120 | 165 | 45 | 2.95 | 215.34 | 426.8 | 2300 |
SL01 4926 | 130 | 180 | 50 | 3.95 | 252.2 | 494.7 | 2100 |
SL01 4928 | 140 | 190 | 50 | 4.2 | 261.9 | 533.5 | 2000 |
SL01 4830 | 150 | 190 | 40 | 2.9 | 224.07 | 514.1 | 1900 |
