6XXX Series, With Snap Rings Description:

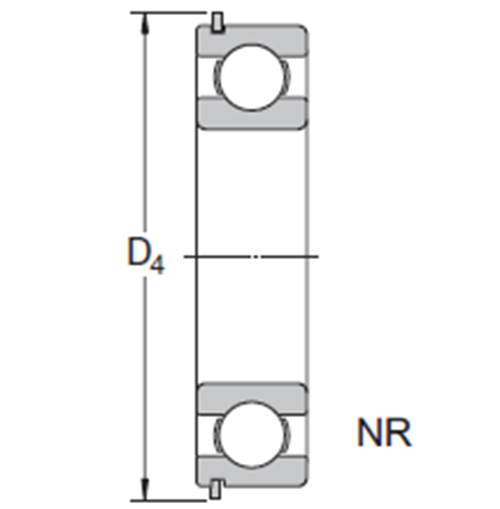

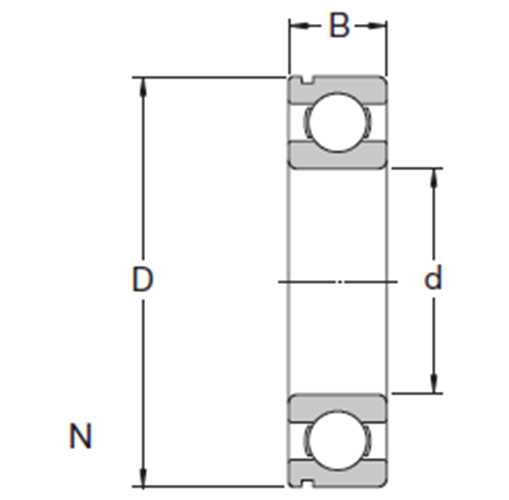

THB Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. Single and double rows are available. Open, seals(suffix 2RS) and shields(suffix 2Z) type are available. Open bearings are suitable for high to very high speeds. Suffix N means snap ring groove in the outer ring. Suffix NR means Snap ring groove in the outer ring with snap ring
Product List
Designations (Bearing with
snap ring groove)
Designations (snap ring
groove and snap
ring)
Principal dimensions
(d) (mm)
Principal dimensions
(D) (mm)
Principal dimensions
(B) (mm)
Basic load ratings
(dynamic) (C) (KN)
Basic load ratings
(static) (C0) (KN)
Fatigue load
limit (Pu)
Speed ratings
(Reference speed)
(r/min)
Speed ratings
(Limting speed)
(r/min)
Mass (kg)
6200N 6200NR 10 30 9 628 2.08152 0.1 6000 34000 0.032
6201N 6201NR 12 32 10 66 2.7342 0.132 50000 32000 0.037
6202N 6202NR 15 35 11 7.10892 3.3075 6 43000 28000 0.045
6203N 6203NR 17 40 12 8.7759 4.1895 0.2 38000 24000 65
6303N 6303NR 17 47 14 66 5.7771 0.275 34000 22000 0.12
6004N 6004NR 20 42 12 8.379 4.41 0.212 38000 24000 69
6204N 6204NR 20 47 14 11.907 5.7771 0.28 32000 20000 0.11
6304N 6304NR 20 52 15 6 66 0.335 30000 19000 0.14
6005N 6005NR 25 47 12 10.4958 5.7771 0.275 32000 20000 0.08
6205N 6205NR 25 52 15 6 66 0.335 28000 18000 0.13
Total 6 Page 60 Records 123456
