RSL18 SERIES



RSL18 SERIES Description:

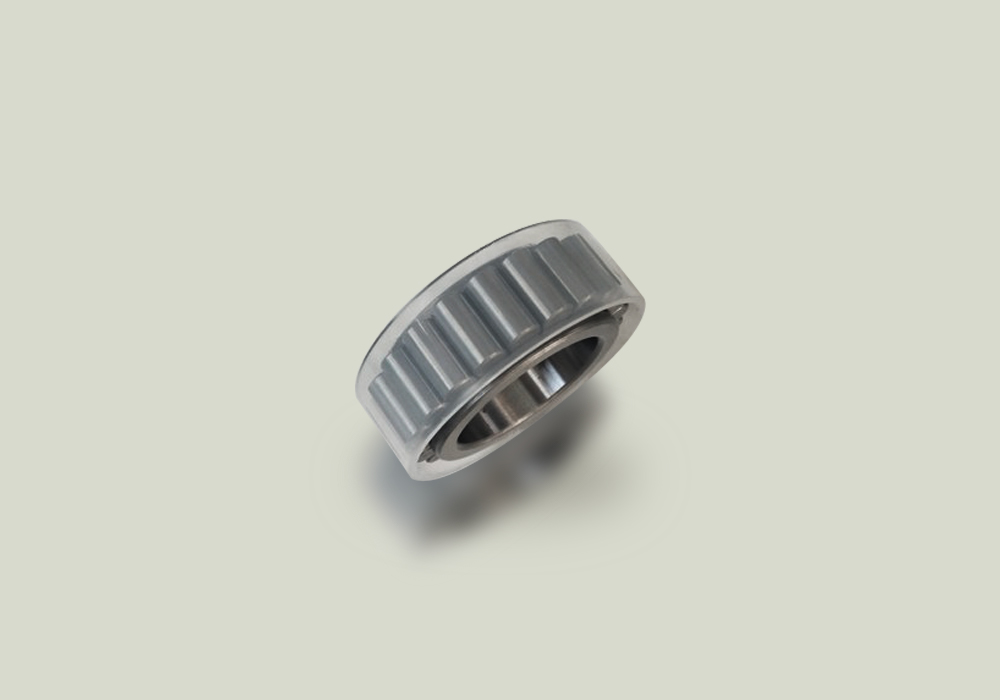

THB RSL18 series full complent cylindrical roller bearings features:
- without outer ring
- double flanged inner ring
Application: for large gearboxes and hardened gear bore mounting, rope sheaves
Product List

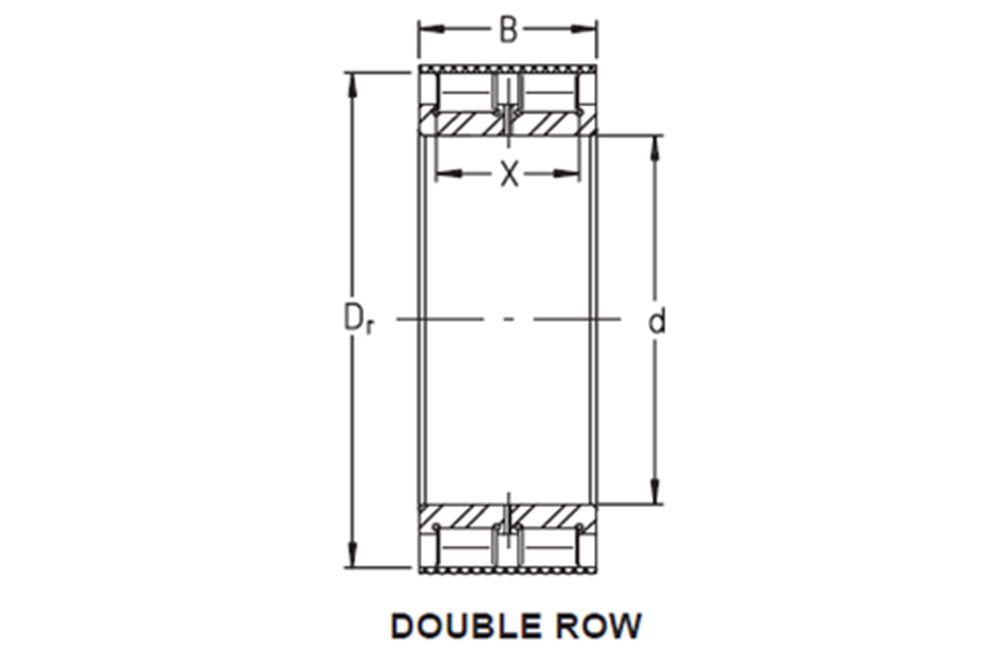

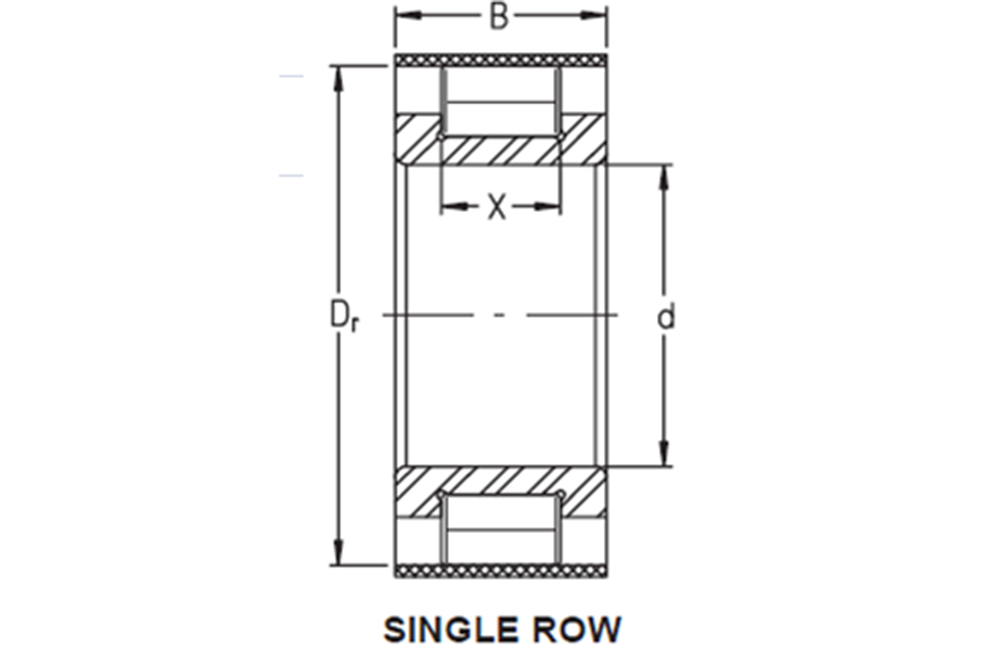

PART NUMBER | SHAFT (d) (mm) | HSG.BORE (Dr) (mm) | WIDTH (B) (mm) | WIDTH (X) (mm) | WGT. (kg) | DYN. CAP. (C) (KN) | STAT.CAP. (C0) (KN) | SPEED LIMIT OIL (rpm) | THRUST SPACER |
RSL18 3004 | 20 | 36.81 | 16 | 9 | 0.062 | 26.675 | 25.705 | 10000 | F 90016 |
RSL18 5004 | 20 | 36.81 | 30 | 23 | 0.12 | 46.075 | 51.41 | 10000 | F 90016 |
RSL18 2204 | 20 | 41.47 | 18 | 12 | 0.1 | 39.77 | 36.375 | 9500 | F 91911 |
RSL18 3005 | 25 | 42.51 | 16 | 9 | 0.078 | 30.555 | 31.525 | 9000 | F87722 |
RSL18 5005 | 25 | 42.51 | 30 | 23 | 0.144 | 52.38 | 63.05 | 9000 | F87722 |
RSL18 2205 | 25 | 46.52 | 18 | 12 | 0.116 | 44.62 | 43.65 | 8500 | F 91212 |
RSL18 2305 | 25 | 53.717 | 24 | 15 | 0.21 | 61.11 | 55.29 | 7500 | F 92059 |
RSL18 3006 | 30 | 49.6 | 19 | 10 | 0.12 | 39.285 | 41.71 | 7500 | F 87606 |
RSL18 5006 | 30 | 49.6 | 34 | 26 | 0.27 | 67.9 | 83.42 | 7500 | F 87606 |
RSL18 2206 | 30 | 55.19 | 20 | 14 | 0.185 | 59.17 | 61.11 | 7000 | F 91913 |
