PWKR series
PWKR Series
PWKR Series Description:

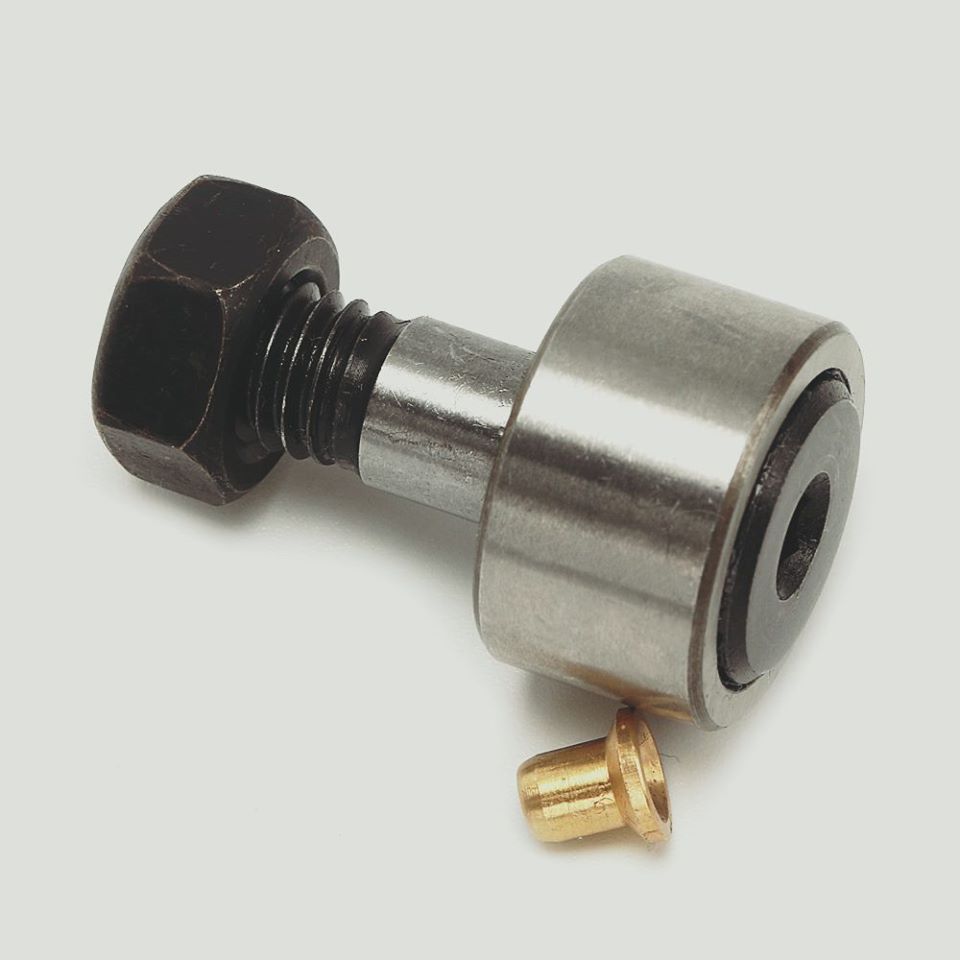

THB PWKR series Stud type cam followers are based on either needle or cylindrical roller bearings. Instead of an inner ring, they have a threaded solid stud (pin). This kind of cam followers are available in several designs and variants to meet the requirements of different applications. THB PWKR series Stud type cam followers are available: - with or without a cage - with different stud designs: ***a concentric seat ***an eccentric collar - with several sealing solutions - with the outer ring running surface profile: ***crowned as standard ***cylindrical (flat)
Product List

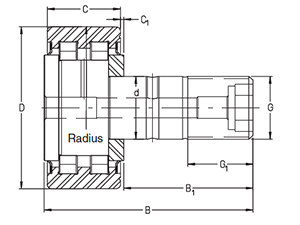

PART NUMBERTIRE (OD)
(D) (mm)
STUD (DIA)
(d) (mm)
TIRE (WIDTH)
(C) (mm)
LENGTH (B)
(mm)
WGT. (g)EFFECT. (DYN)
(CAP) (Cw)
(kN)
EFFECT. (STAT)
(CAP) (C0w)
(kN)
Fr (perm)
(kN)
F0r (perm)
(kN)
B1 (mm)Screw sizes
(G)
G1 (mm)C1 (mm)Ma (Nm)SPEED LIMIT
(GREASE) (rpm)
DYN. (CAP)
(C) (kN)
STAT. (CAP)
(C0) (kN)
PWKR 35 2RS 35 16 18 52 164 12.2 12.1 9.4 12.1 32.5 M 16x1.5 17 0.8 58 6500 23 27
PWKR 40 2RS 40 18 20 58 242 13.8 14.6 14.2 14.6 36.5 M 18x1.5 19 0.8 87 5500 24.8 31
PWKR 47 2RS 47 20 24 66 380 23.1 25.5 25.5 25.5 40.5 M 20x1.5 21 0.8 120 4200 39 50
PWKR 52 2RS 52 20 24 66 450 24 27.5 18.6 27.5 40.5 M 20x1.5 21 0.8 120 3400 43.5 60
PWKR 62 2RS 62 24 28 80 795 34.5 37.5 22.1 37.5 49.5 M 24x1.5 25 0.8 220 2600 59 79
PWKR 72 2RS 72 24 28 80 1020 41.5 48 48 48 49.5 M 24x1.5 25 0.8 220 2100 65 93
PWKR 80 2RS 80 30 35 100 1600 60 79 57 79 63 M 30x1.5 32 1 450 1800 95 133
PWKR 90 2RS 90 30 35 100 1960 66 91 87 91 63 M 30x1.5 32 1 450 1800 95 133
Total 1 Page 8 Records
