UCT300 series
> > > > >
UCT300 Series

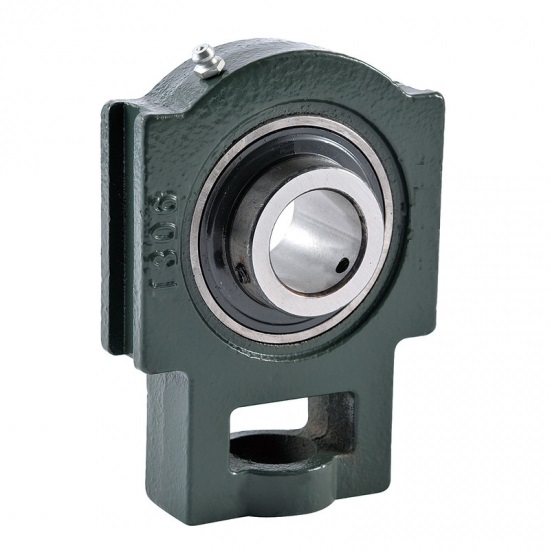

UCT300 Series Description:
THB UCT300 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Unit
No.
Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)

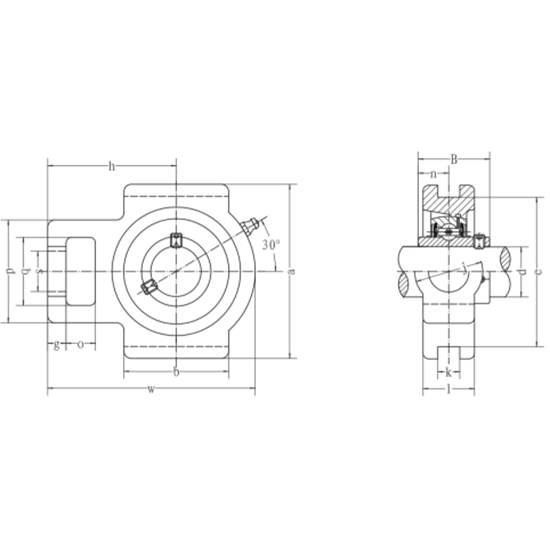

Dimensions (0)
(mm)
Dimensions (g)
(mm)
Dimensions (p)
(mm)
Dimensions (q)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (k)
(mm)
Dimensions (e)
(mm)
Dimensions (a)
(mm)
Dimensions (w)
(mm)
Dimensions (j)
(mm)
Dimensions (l)
(mm)
Dimensions (h)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bearing No.Housing No.Housing (Wt)
(kg)
UCT305-14 7/8 16 12 62 36 26 65 12 80 89 122 36 26 76 38 15 UC305-14 T305 1.05
UCT305-15 15/16 16 12 62 36 26 65 12 80 89 122 36 26 76 38 15 UC305-15 T305 1.05
UCT305-16 1 16 12 62 36 26 65 12 80 89 122 36 26 76 38 15 UC305-16 T305 1.05
UCT305 25 16 12 62 36 26 65 12 80 89 122 36 26 76 38 15 UC305 T305 1.05
UCT306-18 1-1/8 18 14 70 41 28 74 16 90 100 137 41 28 85 43 17 UC306-18 T306 1.24
UCT306-19 1-3/16 18 14 70 41 28 74 16 90 100 137 41 28 85 43 17 UC306-19 T306 1.24
UCT306 30 18 14 70 41 28 74 16 90 100 137 41 28 85 43 17 UC306 T306 1.24
UCT307-20 1-1/4 20 15 75 45 30 80 16 100 111 150 45 32 94 48 19 UC307-20 T307 1.69
UCT307-21 1-5/16 20 15 75 45 30 80 16 100 111 150 45 32 94 48 19 UC307-21 T307 1.69
UCT307-22 1-3/8 20 15 75 45 30 80 16 100 111 150 45 32 94 48 19 UC307-22 T307 1.69
Total 6 Page 51 Records 123456
