UCST200 series
UCST200 Series

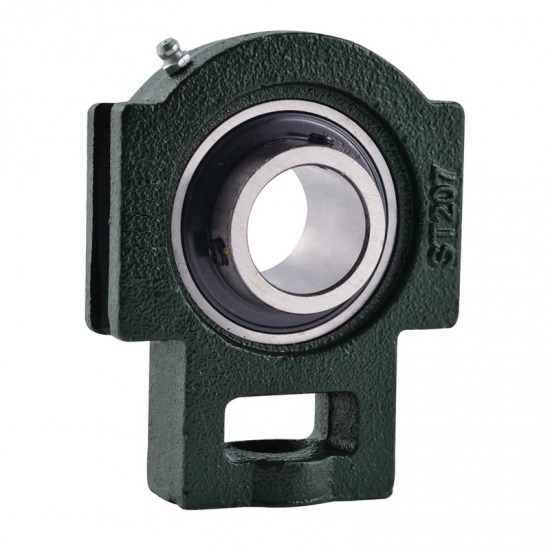

UCST200 Series Description:
THB UCST200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

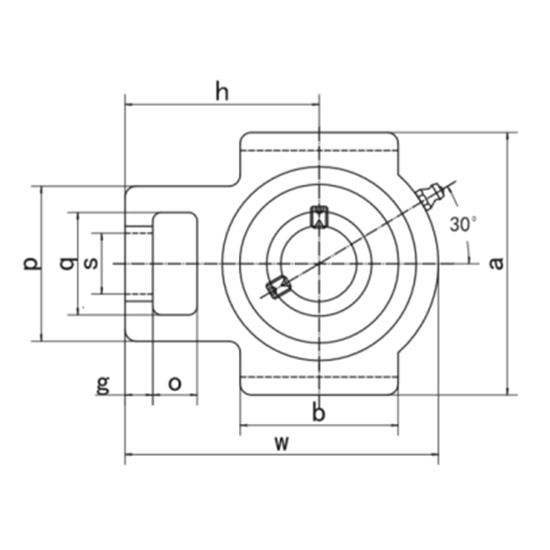

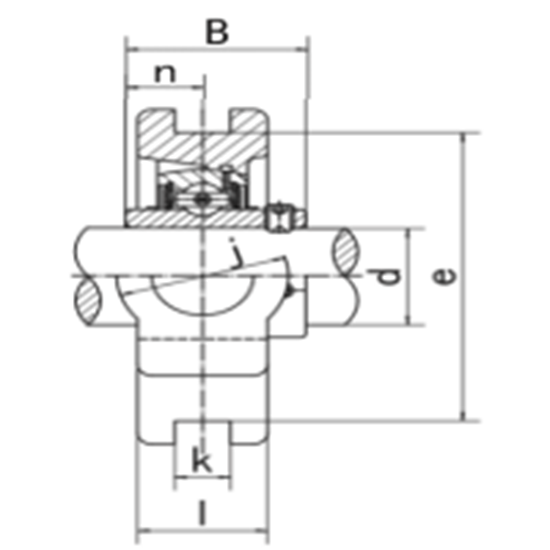

Bearing Unit
No.
Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (0)
(mm)
Dimensions (g)
(mm)
Dimensions (p)
(mm)
Dimensions (q)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (k)
(mm)
Dimensions (e)
(mm)
Dimensions (a)
(mm)
Dimensions (w)
(mm)
Dimensions (j)
(mm)
Dimensions (l)
(mm)
Dimensions (h)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bearing No.Housing No.Housing (Wt)
(kg)
UCST204-12 3/4 16 10 51 32 19 51 13.5 76.2 89 94 32 24 60 31 12.7 UC204-12 ST204 0.48
UCST204 20 16 10 51 32 19 51 13.5 76.2 89 94 32 24 60 31 12.7 UC204 ST204 0.48
UCST205-13 13/16 16 10 51 32 22 51 13.5 76.2 89 97 32 24 62 34.1 14.3 UC205-13 ST205 0.6
UCST205-14 7/8 16 10 51 32 22 51 13.5 76.2 89 97 32 24 62 34.1 14.3 UC205-14 ST205 0.6
UCST205-15 15/16 16 10 51 32 22 51 13.5 76.2 89 97 32 24 62 34.1 14.3 UC205-15 ST205 0.6
UCST205-16 1 16 10 51 32 22 51 13.5 76.2 89 97 32 24 62 34.1 14.3 UC205-16 ST205 0.6
UCST205 25 16 10 51 32 22 51 13.5 76.2 89 97 32 24 62 34.1 14.3 UC205 ST205 0.6
UCST206-17 1-1/16 16 10 56 37 22 57 13.5 88.9 102 113 37 24 70 38.1 15.9 UC206-17 ST206 0.8
UCST206-18 1-1/8 16 10 56 37 22 57 13.5 88.9 102 113 37 24 70 38.1 15.9 UC206-18 ST206 0.8
UCST206-19 1-3/16 16 10 56 37 22 57 13.5 88.9 102 113 37 24 70 38.1 15.9 UC206-19 ST206 0.8
Total 6 Page 51 Records 123456
