UCPW200 series
UCPW200 Series
UCPW200 Series Description:

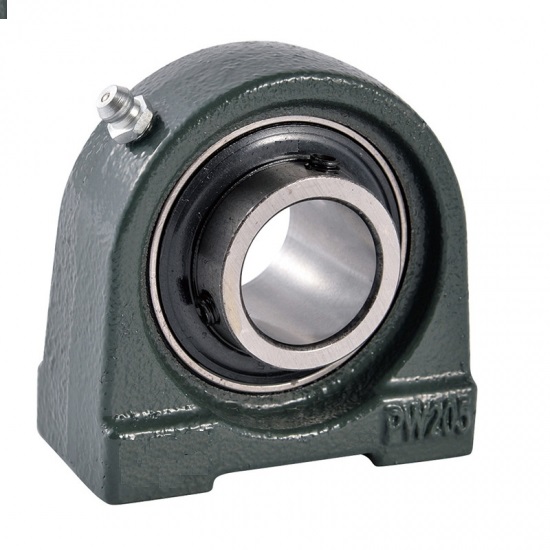

THB UCPW200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
d (in)
Shaft Dia
d (mm)
Dimensinons (h)
(mm)
Dimensinons (a)
(mm)
Dimensinons (e)
(mm)
Dimensinons (b)
(mm)
Dimensinons (s)
(mm)
Dimensinons (l)
(mm)
Dimensinons (g)
(mm)
Dimensinons (w)
(mm)
Dimensinons (B)
(mm)
Dimensinons (n)
(mm)
Bolt Used
(mm)
Bearing No.Housing No.Housing  (wt)
(kg)
UCPW201-8 1/2 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC201-8 PW204 0.38
UCPW202-9 9/16 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC202-9 PW204 0.38
UCPW202-10 5/8 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC202-10 PW204 0.38
UCPW203-11 11/16 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC203-11 PW204 0.38
UCPW204-12 3/4 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC204-12 PW204 0.38
UCPW201 12 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC201 PW204 0.38
UCPW202 15 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC202 PW204 0.38
UCPW203 17 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC203 PW204 0.38
UCPW204 20 33.3 65 50.8 32 M8 13 13 65 31 12.7 M8x1.25 UC204 PW204 0.38
UCPW205-13 13/16 36.5 70 50.8 36 M10 13 13 70 34 14.3 M10x1.5 UC205-13 PW205 0.4
Total 4 Page 36 Records 1234
