UCPE200 series
UCPE200 Series
UCPE200 Series Description:

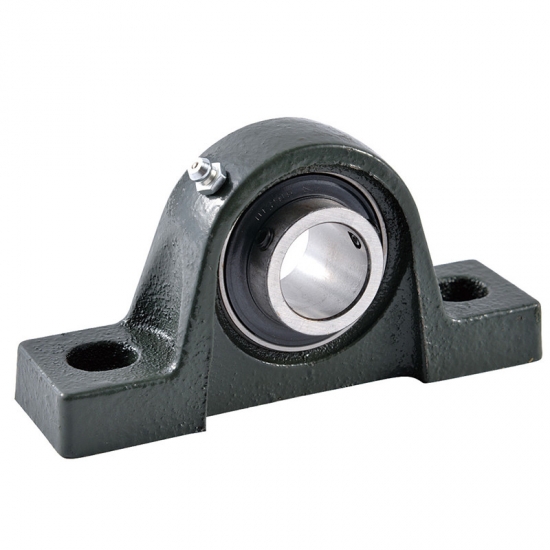

THB UCPE200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
d (in)
Shaft Dia
d (mm)

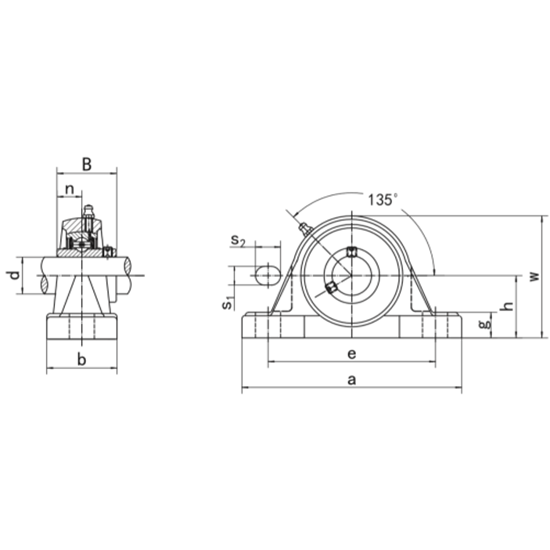

Dimensinons (h)
(mm)
Dimensinons (a)
(mm)
Dimensinons (e)
(mm)
Dimensinons (b)
(mm)
Dimensinons (S2)
(mm)
Dimensinons (S1)
(mm)
Dimensinons (g)
(mm)
Dimensinons (w)
(mm)
Dimensinons (B)
(mm)
Dimensinons (n)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing  (wt)
(kg)
UCPE201-8 1/2 30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW201-8 PE203 0.45
UCPE202-9 9/16 30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW202-9 PE203 0.45
UCPE202-10 5/8 30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW202-10 PE203 0.45
UCPE203-11 11/16 30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW203-11 PE203 0.45
UCPE201 12 30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW201 PE203 0.45
UCPE202 15 30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW202 PE203 0.45
UCPE203 17 30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW203 PE203 0.45
UCPE204-12 3/4 33.3 127 95 38 16 13 15 65 31 12.7 M10 3/8 UC204-12 PE204 0.65
UCPE204 20 33.3 127 95 38 16 13 15 65 31 12.7 M10 3/8 UC204 PE204 0.65
UCPE205-13 13/16 36.6 140 105 38 16 13 16 70 34 14.3 M10 3/8 UC205-13 PE205 0.75
Total 6 Page 58 Records 123456
