UCFLX00 series
UCFLX00 Series
UCFLX00 Series Description:

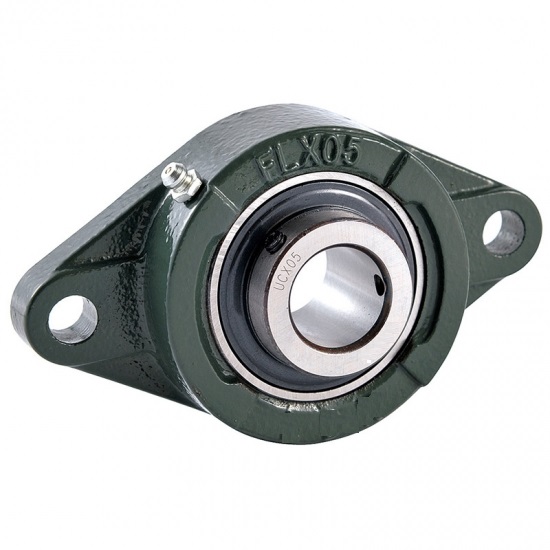

THB UCFLX00 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensinons (a)
(mm)
Dimensinons (e)
(mm)
Dimensinons (i)
(mm)
Dimensinons (g)
(mm)
Dimensinons (l)
(mm)
Dimensinons (s)
(mm)
Dimensinons (b)
(mm)
Dimensinons (z)
(mm)
Dimensinons (B)
(mm)
Dimensinons (n)
(mm)
Bolt Used
(in)
Bolt Used
(mm)
Bearing No.Housing No.Housing  (wt)
(kg)
UCFLX05-13 13/16 141 117 18 13 30 12 83 40.2 38.1 15.9 3/8 M10 UCX05-13 FLX05 0.61
UCFLX05-14 7/8 141 117 18 13 30 12 83 40.2 38.1 15.9 3/8 M10 UCX05-14 FLX05 0.61
UCFLX05-15 15/16 141 117 18 13 30 12 83 40.2 38.1 15.9 3/8 M10 UCX05-15 FLX05 0.61
UCFLX05-16 1 141 117 18 13 30 12 83 40.2 38.1 15.9 3/8 M10 UCX05-16 FLX05 0.61
UCFLX05 25 141 117 18 13 30 12 83 40.2 38.1 15.9 3/8 M10 UCX05 FLX05 0.61
UCFLX06-17 1-1/16 156 130 19 14 34 16 95 44.4 42.9 17.5 1/2 M14 UCX06-17 FLX06 0.82
UCFLX06-18 1-1/8 156 130 19 14 34 16 95 44.4 42.9 17.5 1/2 M14 UCX06-18 FLX06 0.82
UCFLX06-19 1-3/16 156 130 19 14 34 16 95 44.4 42.9 17.5 1/2 M14 UCX06-19 FLX06 0.82
UCFLX06-20 1-1/4 156 130 19 14 34 16 95 44.4 42.9 17.5 1/2 M14 UCX06-20 FLX06 0.82
UCFLX06 30 156 130 19 14 34 16 95 44.4 42.9 17.5 1/2 M14 UCX06 FLX06 0.82
Total 3 Page 27 Records 123
