UCFCX00 series
UCFCX00 Series
UCFCX00 Series Description:

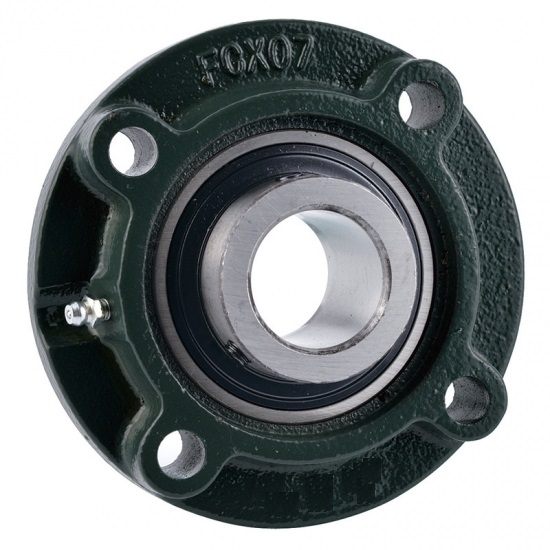

THB UCFCX00 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (a)
(mm)
Dimensions (p)
(mm)
Dimensions (e)
(mm)
Dimensions (i)
(mm)
Dimensions (s)
(mm)
Dimensions (j)
(mm)
Dimensions (k)
(mm)
Dimensions (g)
(mm)
Dimensions (f)
(mm)
Dimensions (z)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bolt Used
(in)
Bolt Used
(mm)
Bearing No.Housing No.Housing (Wt)
(kg)
UCFCX05-16 1 111 92 65 10 9.5 6 9.5 24 76 32.2 38.1 15.9 5/16 M8 UCX05-16 FCX05 1.1
UCFCX05 25 111 92 65 10 9.5 6 9.5 24 76 32.2 38.1 15.9 5/16 M8 UCX05 FCX05 1.1
UCFCX06-19 1-3/16 127 105 74.2 8 12 9.5 9.5 22.5 85 33.4 42.9 17.5 3/8 M10 UCX06-19 FCX06 1.4
UCFCX06-20 1-1/4 127 105 74.2 8 12 9.5 9.5 22.5 85 33.4 42.9 17.5 3/8 M10 UCX06-20 FCX06 1.4
UCFCX06 30 127 105 74.2 8 12 9.5 9.5 22.5 85 33.4 42.9 17.5 3/8 M10 UCX06 FCX06 1.4
UCFCX07-22 1-3/8 133 111 78.5 9 12 11 11 26 92 39.2 49.2 19 3/8 M10 UCX07-22 FCX07 1.8
UCFCX07-23 1-7/16 133 111 78.5 9 12 11 11 26 92 39.2 49.2 19 3/8 M10 UCX07-23 FCX07 1.8
UCFCX07 35 133 111 78.5 9 12 11 11 26 92 39.2 49.2 19 3/8 M10 UCX07 FCX07 1.8
UCFCX08-24 1-1/2 133 111 78.5 9 12 11 11 26 92 39.2 49.2 19 3/8 M10 UCX08-24 FCX08 1.8
UCFCX08 40 133 111 78.5 9 12 11 11 26 92 39.2 49.2 19 3/8 M10 UCX08 FCX08 1.8
Total 4 Page 36 Records 1234
