UCFB200 series
UCFB200 Series
UCFB200 Series Description:

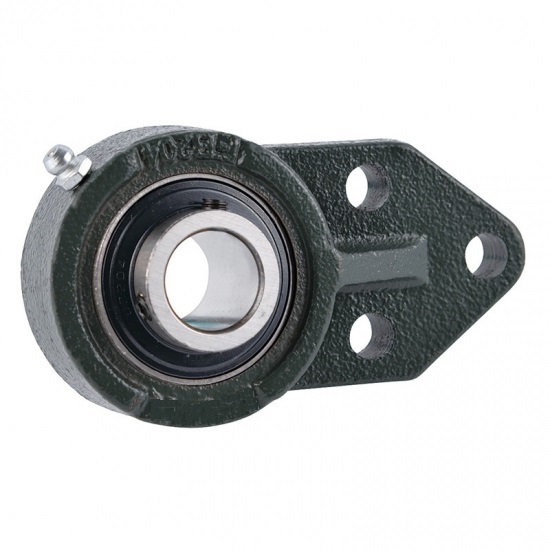

THB UCFB200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

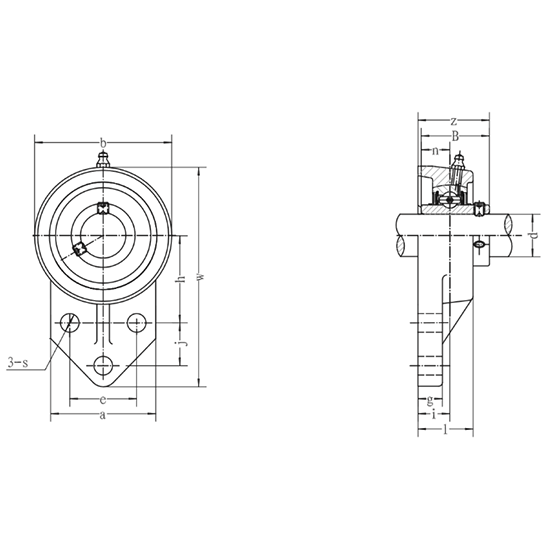

Bearing Unit No.Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (w)
(mm)
Dimensions (h)
(mm)
Dimensions (e)
(mm)
Dimensions (j)
(mm)
Dimensions (i)
(mm)
Dimensions (g)
(mm)
Dimensions (l)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (a)
(mm)
Dimensions (z)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing Wt
(kg)
UCFB201-8 1/2 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC201-8 FB204 0.38
UCFB202-9 9/16 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC202-9 FB204 0.38
UCFB202-10 5/8 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC202-10 FB204 0.38
UCFB203-11 11/16 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC203-11 FB204 0.38
UCFB204-12 3/4 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC204-12 FB204 0.38
UCFB201 12 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC201 FB204 0.38
UCFB202 15 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC202 FB204 0.38
UCFB203 17 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC203 FB204 0.38
UCFB204 20 108 42.9 38.1 22 15.9 8 25.4 10 63.5 60.3 34.1 31 12.7 M8 5/16 UC204 FB204 0.38
UCFB205-13 13/16 121 46 41.3 28.5 16.7 9.5 28.5 10 70 63.5 36.5 34 14.3 M8 5/16 UC205-13 FB205 0.49
Total 4 Page 36 Records 1234
