UCCP200 Series Description:
THB UCCP200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
d (in)
Shaft Dia
d (mm)

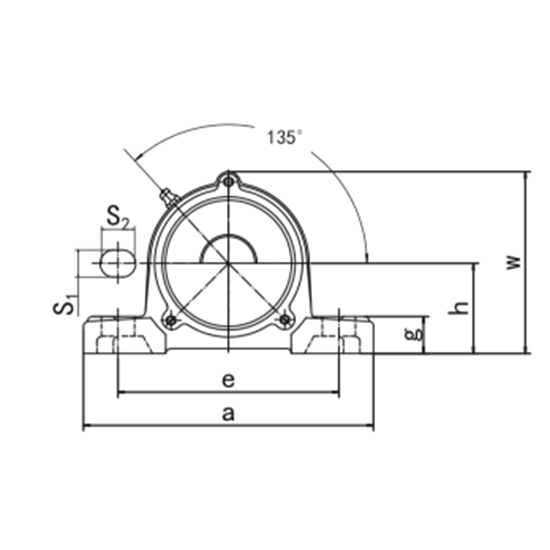

Dimensinons (h)
(mm)
Dimensinons (a)
(mm)
Dimensinons (e)
(mm)
Dimensinons (b)
(mm)
Dimensinons (S1)
(mm)
Dimensinons (S2)
(mm)
Dimensinons (w)
(mm)
Dimensinons (t)
(mm)
Dimensinons (B)
(mm)
Dimensinons (n)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing  (wt)
(kg)
UCCP201C-8 1/2 30.2 127 95 38 13 19 66 62 31 12.7 M10 3/8 UC201-8 0.89
UCCP202C-9 9/16 30.2 127 95 38 13 19 66 62 31 12.7 M10 3/8 UC202-9 0.89
UCCP202C-10 5/8 30.2 127 95 38 13 19 66 62 31 12.7 M10 3/8 UC202-10 0.89
UCCP203C-11 11/16 30.2 127 95 38 13 19 66 62 31 12.7 M10 3/8 UC203-11 0.89
UCCP201C 12 30.2 127 95 38 13 19 66 62 31 12.7 M10 3/8 UC201 CP201 0.89
UCCP202C 15 30.2 127 95 38 13 19 66 62 31 12.7 M10 3/8 UC202 CP202 0.89
UCCP203C 17 30.2 127 95 38 13 19 66 62 31 12.7 M10 3/8 UC203 CP203 0.89
UCCP204C-12 3/4 33.3 127 95 38 13 19 69 62 31 12.7 M10 3/8 UC204-12 CP204 0.89
UCCP204C 20 33.3 127 95 38 13 19 69 62 31 12.7 M10 3/8 UC204 CP204 0.89
UCCP205C-13 13/16 36.5 140 105 38 13 19 76 70 34 14.3 M10 3/8 UC205-13 CP205 1.21
Total 7 Page 64 Records 1234567
