UCC300 series
> > > > >
UCC300 Series
UCC300 Series Description:
THB UCC300 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

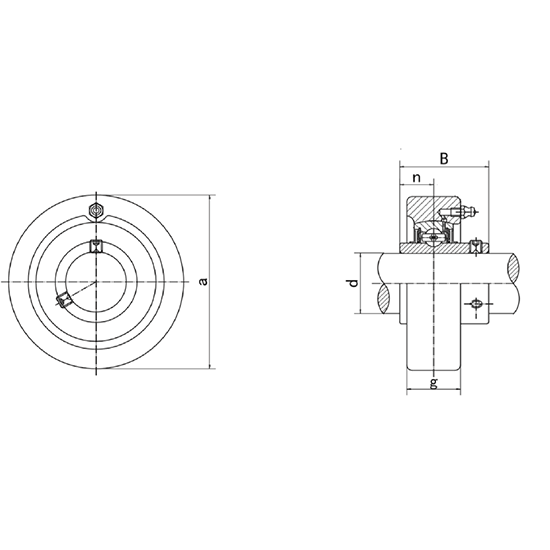

Bearing Unit No.Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (a)
(mm)
Dimensions (g)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bearing No.Housing No.Housing (Wt)
(kg)
UCC305-14 7/8 90 26 38 15 UC305-14 C305 0.75
UCC305-15 15/16 90 26 38 15 UC305-15 C305 0.75
UCC305-16 1 90 26 38 15 UC305-16 C305 0.75
UCC305 25 90 26 38 15 UC305 C305 0.75
UCC306-18 1-1/8 100 28 43 17 UC306-18 C306 0.84
UCC306-19 1-3/16 100 28 43 17 UC306-19 C306 0.84
UCC306 30 100 28 43 17 UC306 C306 0.84
UCC307-20 1-1/4 110 32 48 19 UC307-20 C307 1.09
UCC307-21 1-5/16 110 32 48 19 UC307-21 C307 1.09
UCC307-22 1-3/8 110 32 48 19 UC307-22 C307 1.09
Total 6 Page 51 Records 123456
