UCAK200 series
UCAK200 Series
UCAK200 Series Description:

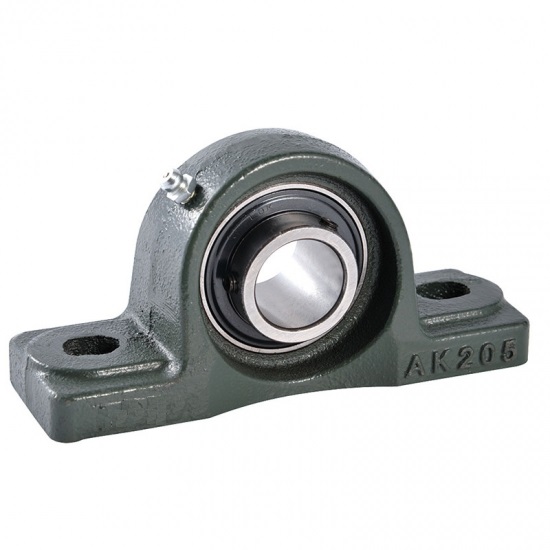

THB UCAK200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
d (in)
Shaft Dia
d (mm)

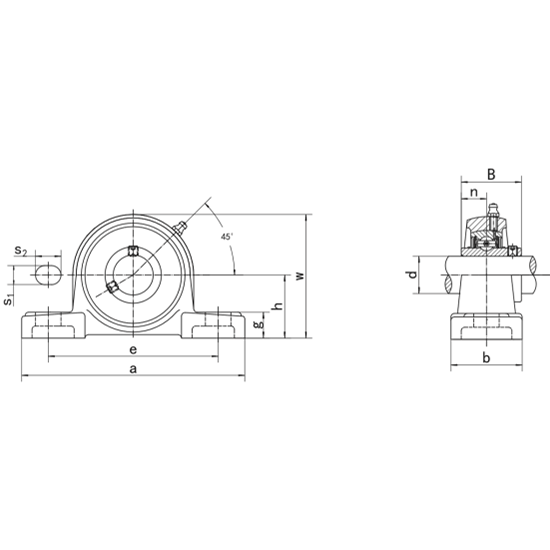

Dimensinons (h)
(mm)
Dimensinons (a)
(mm)
Dimensinons (e)
(mm)
Dimensinons (b)
(mm)
Dimensinons (S2)
(mm)
Dimensinons (S1)
(mm)
Dimensinons (g)
(mm)
Dimensinons (w)
(mm)
Dimensinons (B)
(mm)
Dimensinons (n)
(mm)
Bolt Used
(in)
Bolt Used
(mm)
Bearing No.Housing No.Housing  (wt)
(kg)
UCAK201-8 1/2 27 121 89 35 16 12 13 54 37.3 13.9 3/8 M10 UCW201-8 AK203 0.62
UCAK202-10 5/8 27 121 89 35 16 12 13 54 37.3 13.9 3/8 M10 UCW202-10 AK203 0.62
UCAK201 12 27 121 89 35 16 12 13 54 37.3 13.9 3/8 M10 UCW201 AK203 0.62
UCAK202 15 27 121 89 35 16 12 13 54 37.3 13.9 3/8 M10 UCW202 AK203 0.62
UCAK203 17 27 121 89 35 16 12 13 54 37.3 13.9 3/8 M10 UCW203 AK203 0.62
UCAK204-12 3/4 31.8 133 98 41 16 12 14.3 64 43.7 17.1 3/8 M10 UC204-12 AK204 0.6
UCAK204 20 31.8 133 98 41 16 12 14.3 64 43.7 17.1 3/8 M10 UC204 AK204 0.6
UCAK205-13 13/16 33.3 140 105 45 16 12 16 68 44.4 17.5 3/8 M10 UC205-13 AK205 0.72
UCAK205-14 7/8 33.3 140 105 45 16 12 16 68 44.4 17.5 3/8 M10 UC205-14 AK205 0.72
UCAK205-15 15/16 33.3 140 105 45 16 12 16 68 44.4 17.5 3/8 M10 UC205-15 AK205 0.72
Total 6 Page 56 Records 123456
