SBPP200 series
SBPP200 Series
SBPP200 Series Description:

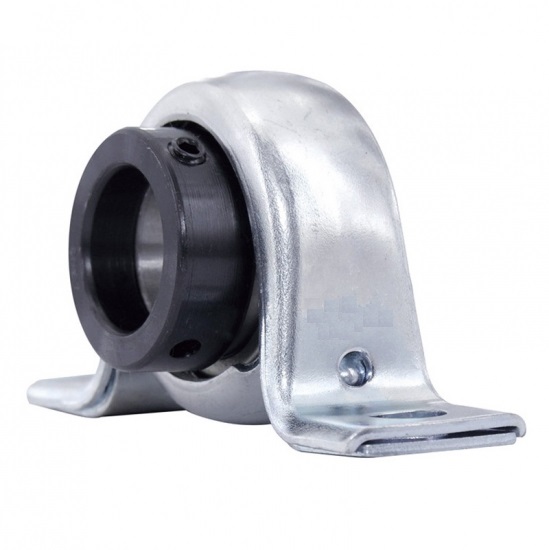

THB SBPP200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

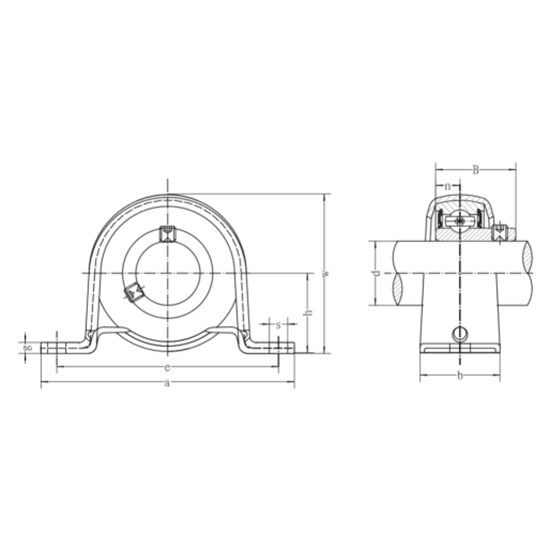

Bearing Unit
No.
Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (h)
(mm)
Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (b)
(mm)
Dimensions (s)
(mm)
Dimensions (g)
(mm)
Dimensions (w)
(mm)
Dimensions (n)
(mm)
Dimensions (B)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing (Wt)
(Kg)
SBPP201-8 1/2 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB201-8 PP203 0.16
SBPP202-9 9/16 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB202-9 PP203 0.16
SBPP202-10 5/8 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB202-10 PP203 0.16
SBPP203-11 11/16 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB203-11 PP203 0.16
SBPP201 12 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB201 PP203 0.16
SBPP202 15 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB202 PP203 0.16
SBPP203 17 22.2 86 68 25 9.5 3.2 44 6 22 M8 5/16 SB203 PP203 0.16
SBPP204-12 3/4 25.4 98 76 32 9.5 3.2 50 7 25 M8 5/16 SB204-12 PP204 0.21
SBPP204 20 25.4 98 76 32 9.5 3.2 50 7 25 M8 5/16 SB204 PP204 0.21
SBPP205-13 13/16 28.6 108 86 32 11.5 4 56 7.5 27 M10 3/8 SB205-13 PP205 0.29
Total 3 Page 24 Records 123
