SBLLP200 series
SBLLP200 Series
SBLLP200 Series Description:

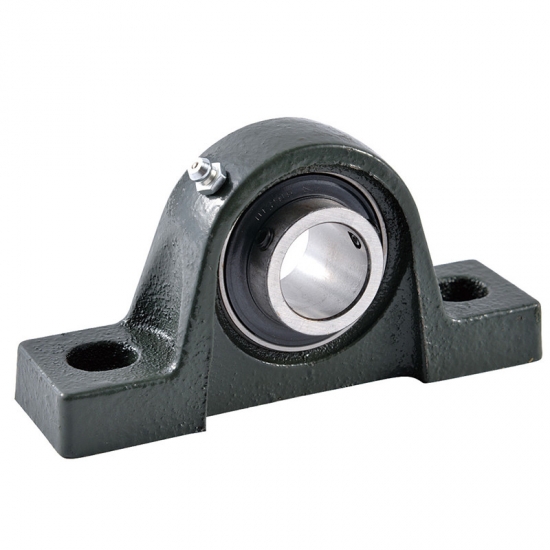

THB SBLLP200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

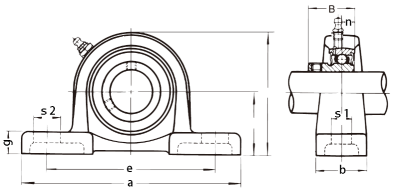

Bearing Unit No.Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (h)
(mm)
Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (b)
(mm)
Dimensions (s1)
(mm)
Dimensions (s2)
(mm)
Dimensions (g)
(mm)
Dimensions (w)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing (Wt
) (kg)
SBLLP201-8 1/2 30.2 114 87 25 12 16 12 57 22 6 3/8 M10 SB201-8 LLP203 0.29
SBLLP202-9 9/16 30.2 114 87 25 12 16 12 57 22 6 3/8 M10 SB202-9 LLP203 0.29
SBLLP202-10 5/8 30.2 114 87 25 12 16 12 57 22 6 3/8 M10 SB202-10 LLP203 0.29
SBLLP203-11 11/16 30.2 114 87 25 12 16 12 57 22 6 3/8 M10 SB203-11 LLP203 0.29
SBLLP201 12 30.2 114 87 25 12 16 12 57 22 6 3/8 M10 SB201 LLP203 0.29
SBLLP202 15 30.2 114 87 25 12 16 12 57 22 6 3/8 M10 SB202 LLP203 0.29
SBLLP203 17 30.2 114 87 25 12 16 12 57 22 6 3/8 M10 SB203 LLP203 0.29
SBLLP204-12 3/4 33.3 125 97 27 12 16 13 64 24.7 7 3/8 M10 SB204-12 LLP204 0.38
SBLLP204 20 33.3 125 97 27 12 16 13 64 24.7 7 3/8 M10 SB204 LLP204 0.38
SBLLP205-14 7/8 36.5 130 100 29 12 16 13 70 27 7.5 3/8 M10 SB205-14 LLP205 0.45
Total 3 Page 23 Records 123
