SBLFL0 series
SBLFL0 Series
SBLFL0 Series Description:

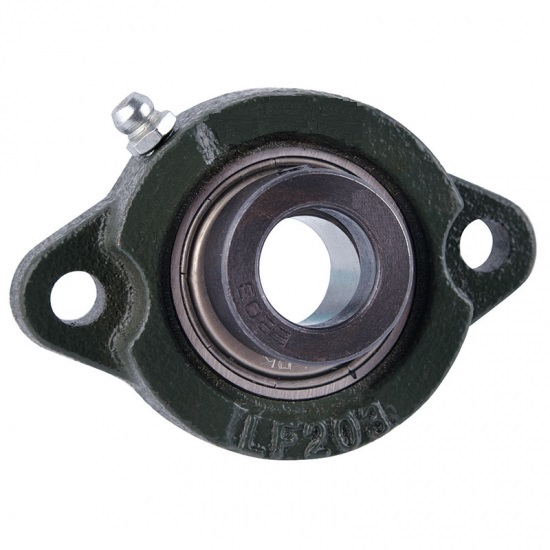

THB SBLFL0 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings.

Housing Materials: HT200, 440C, 420C, 304, ductile iron are available.
Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Unit No.Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (i)
(mm)
Dimensions (g)
(mm)
Dimensions (l)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (n)
(mm)
Dimensions (z)
(mm)
Dimensions (B)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing (Wt
) (kg)
SBLFL1-8 1/2 81 63.5 9.5 9.5 18 7 56 25.5 22 6 M6 1/4 SB201-8 LFL3 0.15
SBLFL2-9 9/16 81 63.5 9.5 9.5 18 7 56 25.5 22 6 M6 1/4 SB202-9 LFL3 0.15
SBLFL2-10 5/8 81 63.5 9.5 9.5 18 7 56 25.5 22 6 M6 1/4 SB202-10 LFL3 0.15
SBLFL3-11 11/16 81 63.5 9.5 9.5 18 7 56 25.5 22 6 M6 1/4 SB203-11 LFL3 0.15
SBLFL1 12 81 63.5 9.5 9.5 18 7 56 25.5 22 6 M6 1/4 SB201 LFL3 0.15
SBLFL2 15 81 63.5 9.5 9.5 18 7 56 25.5 22 6 M6 1/4 SB202 LFL3 0.15
SBLFL3 17 81 63.5 9.5 9.5 18 7 56 25.5 22 6 M6 1/4 SB203 LFL3 0.15
SBLFL4-12 3/4 90 71.5 11 11 20 10 63 29 25 7 M8 5/16 SB204-12 LFL4 0.2
SBLFL4 20 90 71.5 11 11 20 10 63 29 25 7 M8 5/16 SB204 LFL4 0.2
SBLFL5-14 7/8 95 76 11 11 20 10 69 30 27 7.5 M8 5/16 SB205-14 LFL5 0.26
Total 3 Page 21 Records 123
