SBLF200  series
SBLF200 Series
SBLF200 Series Description:

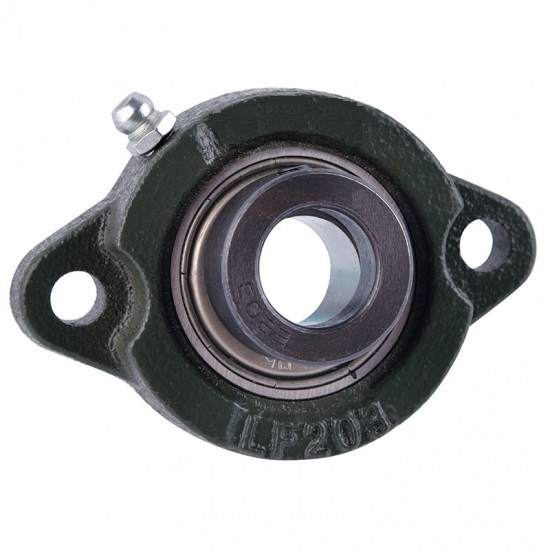

THB SBLF200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Unit No.Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)

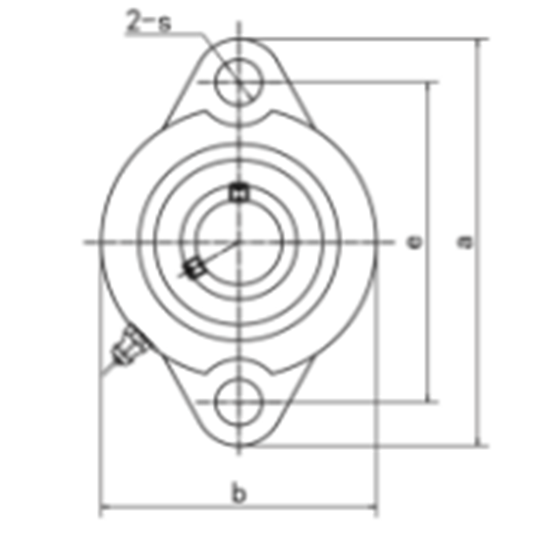

Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (i)
(mm)
Dimensions (g)
(mm)
Dimensions (l)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (n)
(mm)
Dimensions (z)
(mm)
Dimensions (B)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing (Wt
) (kg)
SBLF201-8 1/2 81 63.5 9.5 9.5 18 8 56 6 25.5 22 M6 1/4 SB201-8 LF203 0.15
SBLF202-9 9/16 81 63.5 9.5 9.5 18 8 56 6 25.5 22 M6 1/4 SB202-9 LF203 0.15
SBLF202-10 5/8 81 63.5 9.5 9.5 18 8 56 6 25.5 22 M6 1/4 SB202-10 LF203 0.15
SBLF203-11 11/16 81 63.5 9.5 9.5 18 8 56 6 25.5 22 M6 1/4 SB203-11 LF203 0.15
SBLF201 12 81 63.5 9.5 9.5 18 8 56 6 25.5 22 M6 1/4 SB201 LF203 0.15
SBLF202 15 81 63.5 9.5 9.5 18 8 56 6 25.5 22 M6 1/4 SB202 LF203 0.15
SBLF203 17 81 63.5 9.5 9.5 18 8 56 6 25.5 22 M6 1/4 SB203 LF203 0.15
SBLF204-12 3/4 90 71.5 11 11 20 10 61 7 29 25 M8 5/16 SB204-12 LF204 0.2
SBLF204 20 90 71.5 11 11 20 10 61 7 29 25 M8 5/16 SB204 LF204 0.2
SBLF205-14 7/8 95 76 11 11 20 10 64 7.5 30.5 27 M8 5/16 SB205-14 LF205 0.3
Total 3 Page 21 Records 123
