SBFW200 Series
SBFW200 Series Description:

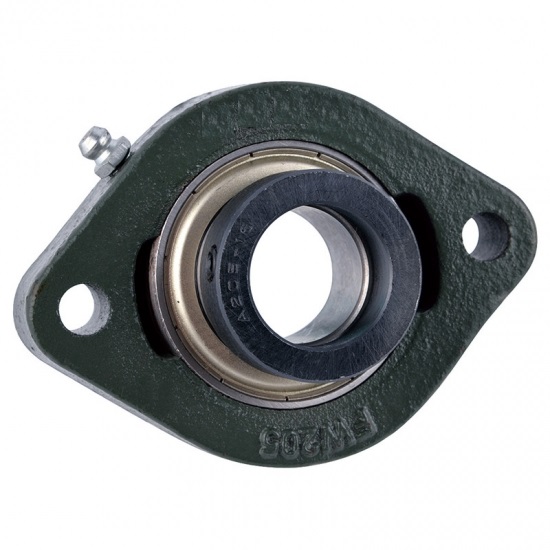

THB SBFW200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Unit
No.
Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (i)
(mm)
Dimensions (l)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (z)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing (Wt)
(kg)
SBFW201-8 1/2 81 63.5 8.5 15 7 58.7 24.5 22 6 M6 1/4 SB201-8 FW203 0.2
SBFW202-9 9/16 81 63.5 8.5 15 7 58.7 24.5 22 6 M6 1/4 SB202-9 FW203 0.2
SBFW202-10 5/8 81 63.5 8.5 15 7 58.7 24.5 22 6 M6 1/4 SB202-10 FW203 0.2
SBFW203-11 11/16 81 63.5 8.5 15 7 58.7 24.5 22 6 M6 1/4 SB203-11 FW203 0.2
SBFW201 12 81 63.5 8.5 15 7 58.7 24.5 22 6 M6 1/4 SB201 FW203 0.2
SBFW202 15 81 63.5 8.5 15 7 58.7 24.5 22 6 M6 1/4 SB202 FW203 0.2
SBFW203 17 81 63.5 8.5 15 7 58.7 24.5 22 6 M6 1/4 SB203 FW203 0.2
SBFW204-12 3/4 90.5 71.40 9.5 17 9 66.5 27.5 25 7 M8 5/16 SB204-12 FW204 0.25
SBFW204 20 90.5 71.40 9.5 17 9 66.5 27.5 25 7 M8 5/16 SB204 FW204 0.25
SBFW205-13 13/16 97 76.2 9.5 17.5 9 71 29 27 7.5 M8 5/16 SB205-13 FW205 0.3
Total 3 Page 27 Records 123
