SBFTN200 Series Description:

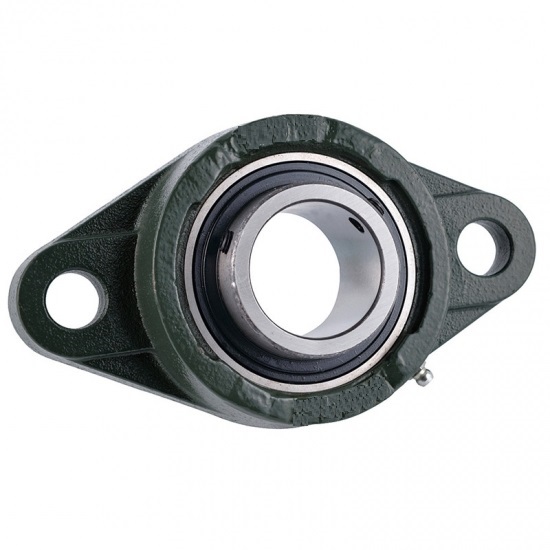

THB SBFTN200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

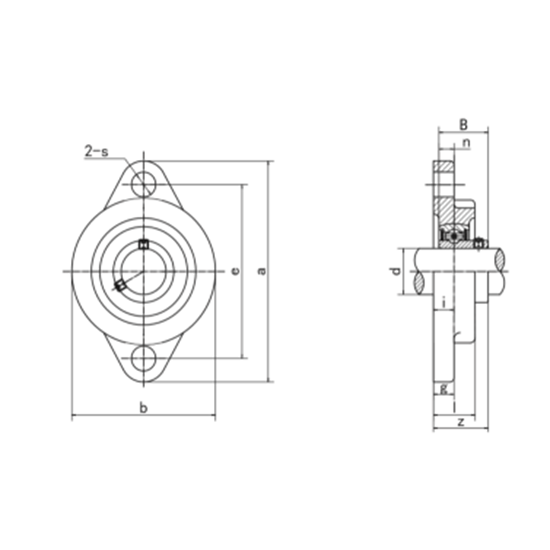

Bearing Unit No.Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (i)
(mm)
Dimensions (g)
(mm)
Dimensions (l)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (z)
(mm)
Dimensions (B)
(mm)
Dimensions (n)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing (Wt
) (kg)
SBFTN201-8 1/2 98 76.2 11.4 10 18 11 54 27.4 22 6 M10 3/8 SB201-8 FTN201 0.23
SBFTN202-9 9/16 98 76.2 11.4 10 18 11 54 27.4 22 6 M10 3/8 SB202-9 FTN202 0.23
SBFTN202-10 5/8 98 76.2 11.4 10 18 11 54 27.4 22 6 M10 3/8 SB202-10 FTN202 0.23
SBFTN203-11 11/16 98 76.2 11.4 10 18 11 54 27.4 22 6 M10 3/8 SB203-11 FTN203 0.23
SBFTN201 12 98 76.2 11.4 10 18 11 54 27.4 22 6 M10 3/8 SB201 FTN201 0.23
SBFTN202 15 98 76.2 11.4 10 18 11 54 27.4 22 6 M10 3/8 SB202 FTN202 0.23
SBFTN203 17 98 76.2 11.4 10 18 11 54 27.4 22 6 M10 3/8 SB203 FTN203 0.23
SBFTN204-12 3/4 112 89.7 12.6 11 21 11 64 30.6 25 7 M10 3/8 SB204-12 FTN204 0.26
SBFTN204 20 112 89.7 12.6 11 21 11 64 30.6 25 7 M10 3/8 SB204 FTN204 0.26
SBFTN205-14 7/8 124 99 12.3 11 21 13 70 31.8 27 7.5 M12 7/16 SB205-14 FTN205 0.35
Total 3 Page 28 Records 123
