SBFCT200 series
SBFCT200 Series
SBFCT200 Series Description:

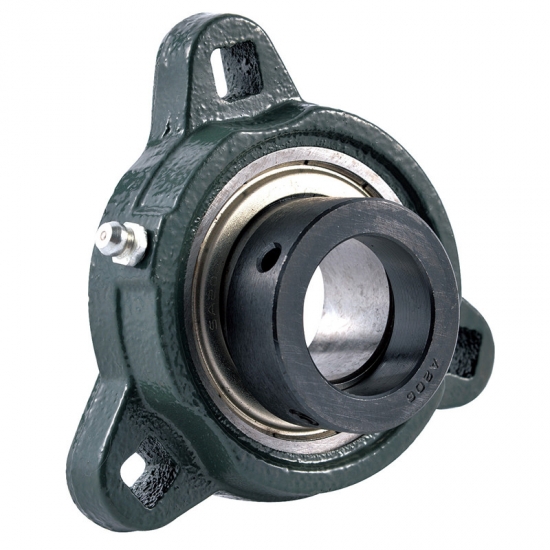

THB SBFCT200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

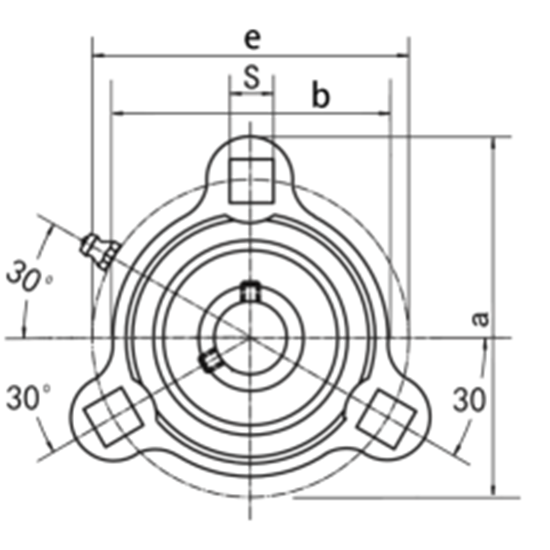

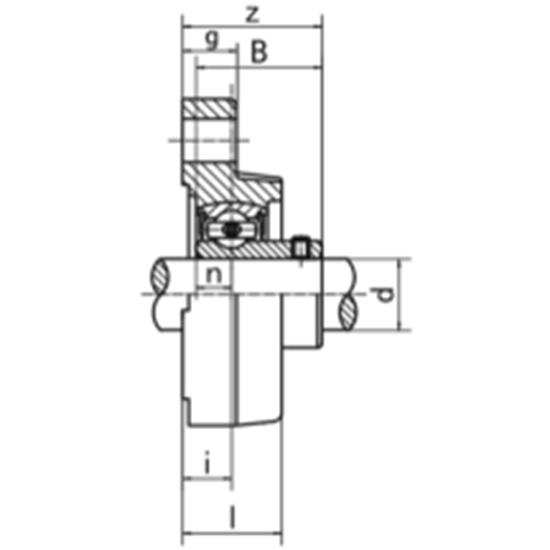

Bearing Unit No.Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (i)
(mm)
Dimensions (g)
(mm)
Dimensions (l)
(mm)
Dimensions (s)
(mm)
Dimensions (b)
(mm)
Dimensions (z)
(mm)
Dimensions (Bi)
(mm)
Dimensions (n)
(mm)
Bolt Used
(mm)
Bolt Used
(in)
Bearing No.Housing No.Housing (Wt)
(kg)
SBFCT201-8 1/2 81 63.5 9.80 10 17.5 7.1 49 25.8 22 6 M6 1/4 SB201-8 FCT203 0.1
SBFCT202-9 9/16 81 63.5 9.80 10 17.5 7.1 49 25.8 22 6 M6 1/4 SB202-9 FCT203 0.1
SBFCT202-10 5/8 81 63.5 9.80 10 17.5 7.1 49 25.8 22 6 M6 1/4 SB202-10 FCT203 0.1
SBFCT203-11 11/16 81 63.5 9.80 10 17.5 7.1 49 25.8 22 6 M6 1/4 SB203-11 FCT203 0.1
SBFCT201 12 81 63.5 9.80 10 17.5 7.1 49 25.8 22 6 M6 1/4 SB201 FCT203 0.1
SBFCT202 15 81 63.5 9.80 10 17.5 7.1 49 25.8 22 6 M6 1/4 SB202 FCT203 0.1
SBFCT203 17 81 63.5 9.80 10 17.5 7.1 49 25.8 22 6 M6 1/4 SB203 FCT203 0.1
SBFCT204-12 3/4 90.40 71.40 11 10 20 8.70 62 29 25 7 M8 5/16 SB204-12 FCT204 0.2
SBFCT204 20 90.40 71.40 11 10 20 8.70 62 29 25 7 M8 5/16 SB204 FCT204 0.2
SBFCT205-14 7/8 95.2 76.2 10.3 12 20 8.70 72 29.8 27 7.5 M8 5/16 SB205-14 FCT205 0.2
Total 3 Page 21 Records 123
