KFL000 Series


KFL000 Series Description:
THB KFL00 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings.
Housing Materials: steel plate
Insert bearing Materials: GCr15, 440C, 420C are available.
Product List

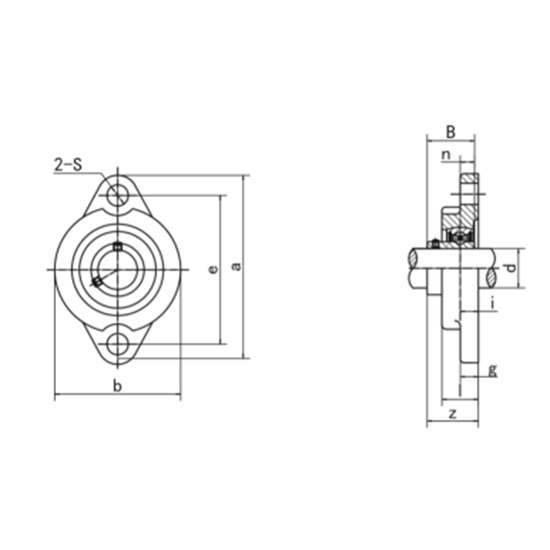

Bearing Unit No. | Shaft Dia (d) (mm) | Dimensions (a) (mm) | Dimensions (e) (mm) | Dimensions (i) (mm) | Dimensions (g) (mm) | Dimensions (l) (mm) | Dimensions (s) (mm) | Dimensions (b) (mm) | Dimensions (z) (mm) | Dimensions (B) (mm) | Dimensions (n) (mm) | Bolt Used (mm) | Bearing No. | Housing No. | Housing (Wt) (kg) |
KFL000 | 10 | 60 | 45 | 5.5 | 5.5 | 11.5 | 7 | 36 | 15.5 | 14 | 4 | M6 | K000 | FL000 | 0.032 |
KFL001 | 12 | 63 | 48 | 5.5 | 5.5 | 11.5 | 7 | 38 | 16 | 14.5 | 4 | M6 | K001 | FL001 | 0.041 |
KFL002 | 15 | 67 | 53 | 6.5 | 6.5 | 13 | 7 | 42 | 18.6 | 16.5 | 4.5 | M6 | K002 | FL002 | 0.05 |
KFL003 | 17 | 71 | 56 | 7 | 7 | 14 | 7 | 46 | 19.5 | 17.5 | 5 | M6 | K003 | FL003 | 0.068 |
KFL004 | 20 | 90 | 71 | 8 | 8 | 16 | 10 | 55 | 23 | 21 | 6 | M8 | K004 | FL004 | 0.104 |
KFL005 | 25 | 95 | 75 | 8 | 8 | 16 | 10 | 60 | 24.5 | 22.5 | 6 | M8 | K005 | FL005 | 0.11 |
KFL006 | 30 | 112 | 85 | 9 | 9 | 18 | 13 | 70 | 27 | 24.5 | 6.5 | M10 | K006 | FL006 | 0.168 |
Total 1 Page 7 Records
