HCFLU200 series
HCFLU200 Series
HCFLU200 Series Description:

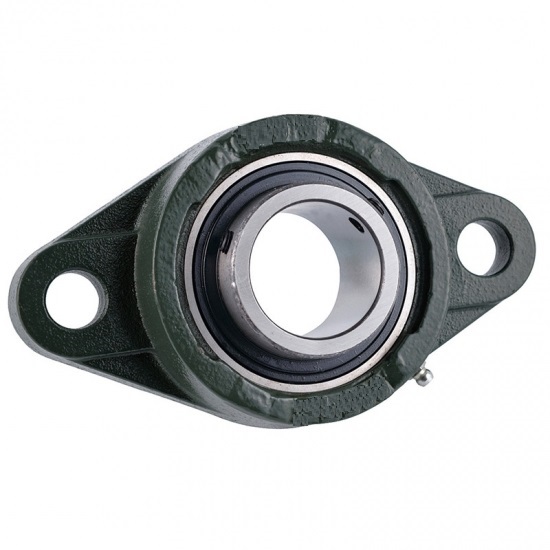

THB HCFLU200 series Pillow block bearings typically consist of a housing, bearing, seal, lubricant and shaft locking mechanism. The units are preassembled and adjusted at the factory. These ready-to-mount units are available with either ball or roller bearings. Housing Materials: HT200, 440C, 420C, 304, ductile iron are available. Insert bearing Materials: GCr15, 440C, 420C are available.
Product List
Bearing Uint
No.
Shaft Dia
(d) (in)
Shaft Dia
(d) (mm)
Dimensions (a)
(mm)
Dimensions (e)
(mm)
Dimensions (b)
(mm)
Dimensions (i)
(mm)
Dimensions (g)
(mm)
Dimensions (l)
(mm)
Dimensions (s)
(mm)
Dimensions (z)
(mm)
Dimensions (n)
(mm)
Bolt Used
(in)
Bolt Used
(mm)
Bearing No.Housing No.Housing (Wt)
(kg)
HCFLU208-25 1-9/16 172 143.5 103 24 17 39 14 58.9 21.4 1/2 M12 HC208-25 FLU208 1.16
HCFLU208 40 172 143.5 103 24 17 39 14 58.9 21.4 1/2 M12 HC208 FLU208 1.16
HCFLU209-26 1-5/8 180 148.5 108 24 18 40 16 58.9 21.4 1/2 M14 HC209-26 FLU209 1.58
HCFLU209-27 1-11/16 180 148.5 108 24 18 40 16 58.9 21.4 1/2 M14 HC209-27 FLU209 1.58
HCFLU209-28 1-3/4 180 148.5 108 24 18 40 16 58.9 21.4 1/2 M14 HC209-28 FLU209 1.58
HCFLU209 45 180 148.5 108 24 18 40 16 58.9 21.4 1/2 M14 HC209 FLU209 1.58
HCFLU210-30 1-7/8 190 157 114 28 20 45 18 66.1 24.6 5/8 M16 HC210-30 FLU210 1.62
HCFLU210-31 1-15/16 190 157 114 28 20 45 18 66.1 24.6 5/8 M16 HC210-31 FLU210 1.62
HCFLU210-32 2 190 157 114 28 20 45 18 66.1 24.6 5/8 M16 HC210-32 FLU210 1.62
HCFLU210 50 190 157 114 28 20 45 18 66.1 24.6 5/8 M16 HC210 FLU210 1.62
Total 5 Page 45 Records 12345
